Home / AC-DC Programmable Power Type / RST-7K5

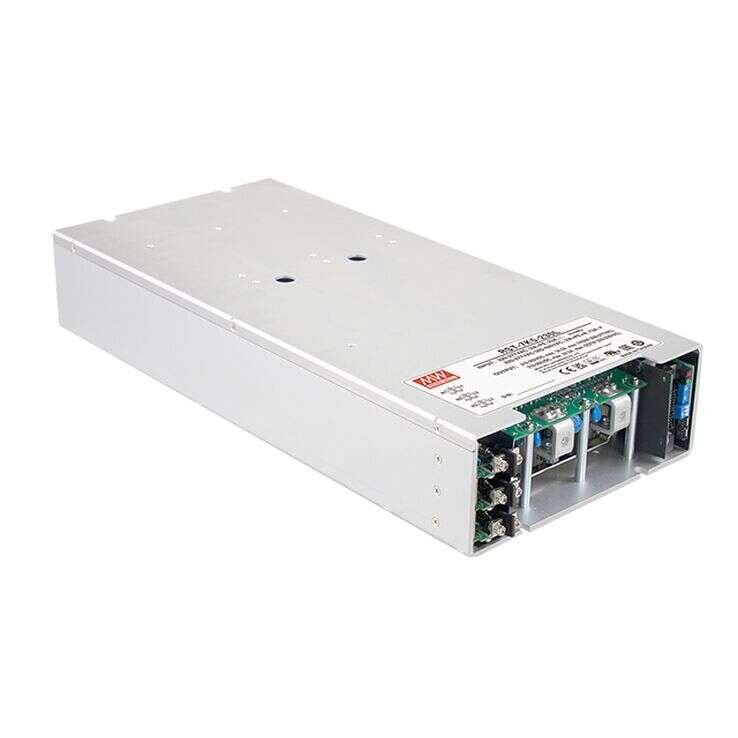

RST-7K5 Series
Enclosed Power Supplies 7452–7515W
RST-7K5 Series Main Features:
RST-75K5 is a 7.5KW single output enclosed type AC/DC power supply
Models:
Manufacturer:
Type:
Other features:
RST-7K5-115 / RST-7K5-230
RST-7K5-380
MEAN WELL
Programmable Power Supplies
3Ø4W AC input with 340~530V wide range
High efficiency up to 95%
Water/forced air cooling types selectable
Output voltage and current level progra
-mmable
Wide voltage adjustment range 1%~120%
Active current sharing (Parallel) up to 30kW
Protections: Short circuit, Over voltage, Over
-load, Over temperature
Built-in T-alarm / DC-OK / Fan fail / AC
fail signals
5 years warranty
Quote Request
| RST-7K5-115 | RST-75K-230 | RST-7K5-380 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 7475 | 7452 | 7515 | |||||||||||||
| Input Voltage | 196~305VAC | 196~305VAC | 196~305VAC | |||||||||||||
| Output Current | 65A | 34.5A | 22.5A | |||||||||||||
| Output Voltage | 115V | 230V | 380V | |||||||||||||
| Dimensions | 460x211x83.5 | 460x211x83.5 | 460x211x83.5 | |||||||||||||
| Working Temperature | -30~70°C | |||||||||||||||
| Satety Standards | UL62368-1, CAN/CSA C22.2 , TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32) / BE EN/EN55011(CISPR11), BS EN/EN61000-3-2, BS EN/EN61000-3-3 | |||||||||||||||
