Home / AC-DC Programmable Power Type / SHP-10K-HV

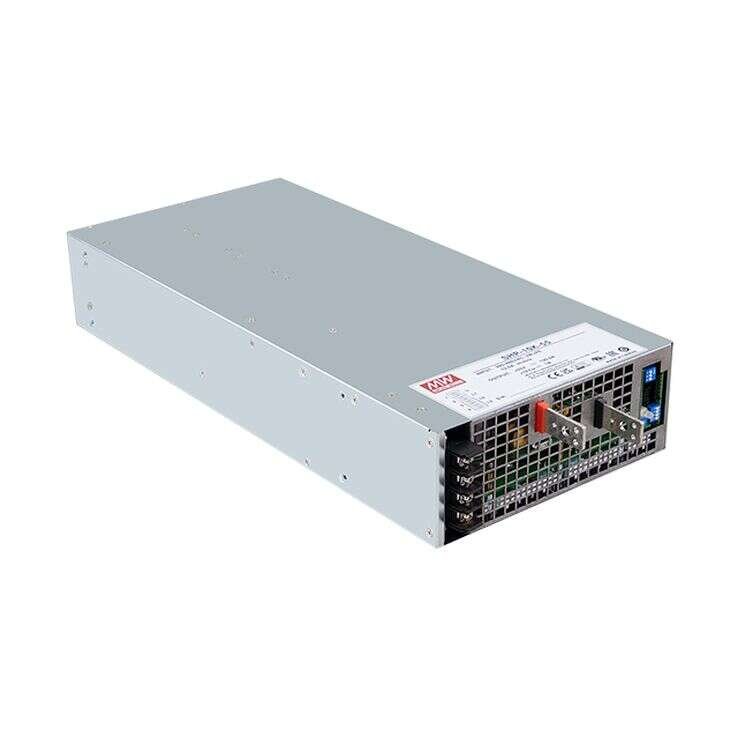

SHP-10K-HV Series
Enclosed Power Supplies 7200–10000W
SHP-10K-HV Series Main Features:
SHP-10K is a 10KW 3 Ø 3W input AC/DC power supply
Protections: Short circuit/ Overload/ Over voltage/ Over temperature/ Fan fail
Models:
Manufacturer:
Type:
Other features:
SHP-10K-55 / SHP-10K-115
SHP-10K-230 / SHP-10K-380
MEAN WELL
Programmable Power Supplies
3ψ 3-wire without neutral /340~530
VAC wide input range
High efficiency up to 97%
Built-in CANBus/Optional PMBus/MOD
Bus-RTU/RS-485 protocol
Output voltage and constant current
level programmable
Active current sharing up to 4 units (40KW)
Built-in remote ON-OFF control/ Auxili
-ary power/ Alarm signal
Water/forced air cooling selectable
2 years warranty
Quote Request
| SHP-10K-55 | SHP-10K-115 | SHP-10K-230 | SHP-10K-380 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 7200 | 10000 | 10000 | 10000 | ||||||||||||
| Input Voltage | 3ψ3-wire / 340~530VAC | 3ψ3-wire / 340~530VAC | 3ψ3-wire / 340~530VAC | 3ψ3-wire / 340~530VAC | ||||||||||||
| Output Current | 150A | 87A | 43.5A | 26.3A | ||||||||||||
| Output Voltage | 55V | 115V | 230V | 380V | ||||||||||||
| Dimensions | 460x211x83.5 | 460x211x83.5 | 460x211x83.5 | 460x211x83.5 | ||||||||||||
| Working Temperature | -30~70°C | |||||||||||||||
| Satety Standards | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032 (CISPR32) / EN55011 (CISPR11), BS EN/EN61000-3-2, BS EN/EN61000-3-3 | |||||||||||||||
