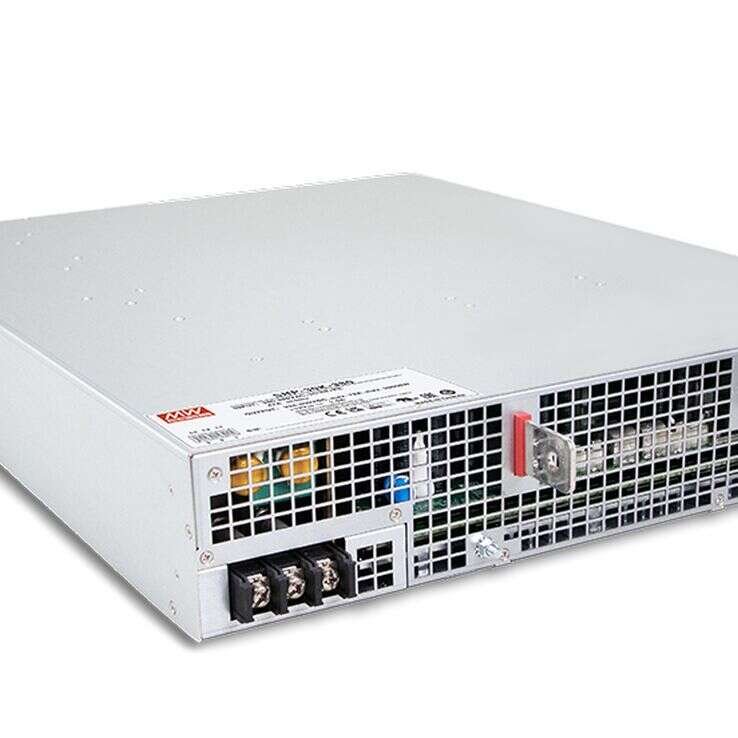

SHP-30K-HV Series
Enclosed Power Supplies 30000W
SHP-30K-HV Series Main Features:
SHP-30K-HV series is a 30KW 3ψ3W input AC/DC power supply
Protections: Short circuit/ Overload/ Over voltage/ Over temperature/ Fan fail
Models:
Manufacturer:
Type:
Other features:
SHP-30K-55 / SHP-30K-115
SHP-30K-230 / SHP-30K-380
MEAN WELL
Programmable Power Supplies
3-wire without Neutral / 340~530VAC
wide input range
High efficiency up to 97%
Built-in CANBus/Optional PMBus/MOD
Bus-RTU/RS-485 protocol
Output voltage and constant current
level programmable
Active current sharing up to 12 units(285KW)
Built-in remote ON-OFF control/ Auxili
-ary power/ Alarm signal
Double insulation for 55V model
5 years warranty
Quote Request
| SHP-30K-55 | SHP-30K-115 | SHP-30K-230 | SHP-30K-380 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 30000 | 30000 | 30000 | 30000 | ||||||||||||
| Input Voltage | 340~530VAC | 340~530VAC | 340~530VAC | 340~530VAC | ||||||||||||
| Output Current | 346A | 261A | 130.5A | 79A | ||||||||||||
| Output Voltage | 55V | 115V | 230V | 380V | ||||||||||||
| Dimensions | 540x424x83.5 | 540x424x83.5 | 540x424x83.5 | 540x424x83.5 | ||||||||||||
| Working Temperature | -30~70°C | |||||||||||||||
| Satety Standards | UL62368-1, IEC62477, CAN/CSA C22.2 , TUV EN62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | EN55024 , EN61204-3, EN61000-6-2 | |||||||||||||||
