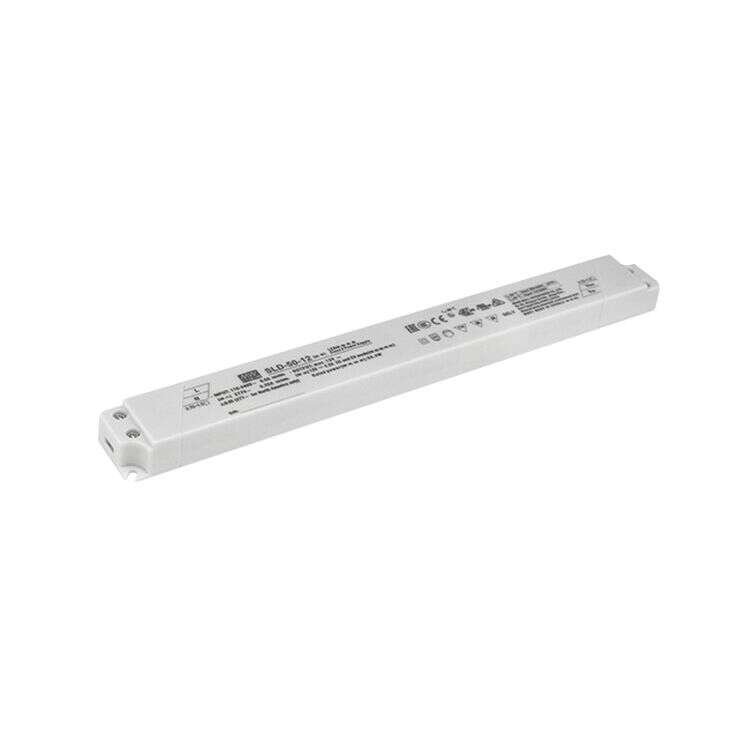

SLD-50 Series
50W linear LED Driver
SLD-50 Series Main Features:
Constant Voltage + Constant Current mode output
Wide input range 110-305VAC with PFC function
Models:
Manufacturer:
Type:
Other features:
SLD-50-12 / SLD-50-24
SLD-50-56
MEAN WELL
Indoor Constant Voltage LED Driver
Compliance with EN 61347 regulation
Class II power unit
Slim and Linear housing design
No load power consumption <0.5E
3 years warranty
Quote Request
| SLD-50-12 | SLD-50-24 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 50 | 50 | ||||||||||||||
| Input Voltage | 110~305VAC 155~431VDC | 110~305VAC 155~431VDC | ||||||||||||||
| Output Current | 4.2A | 2.1A | ||||||||||||||
| Output Voltage Options | Single | Single | ||||||||||||||
| Output Voltage | 12V | 24V | ||||||||||||||
| DC Output Adjustment | 8-12V | 16.8-24V | ||||||||||||||
| Dimensions | 280x30x16.8 | 280x30x16.8 | ||||||||||||||
| Working Temperature | -25-+65°C | |||||||||||||||
| Satety Standards | UL8750,CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004, GB19510.1,GB19510.14, IS15885(Part2/Sec13) ,EN60335-1 approved | |||||||||||||||
| EMC Standards | BS EN/EN55015(CISPR15) ,GB/T 17743, EN IEC 55014-1(CISPR 14-1) | |||||||||||||||
