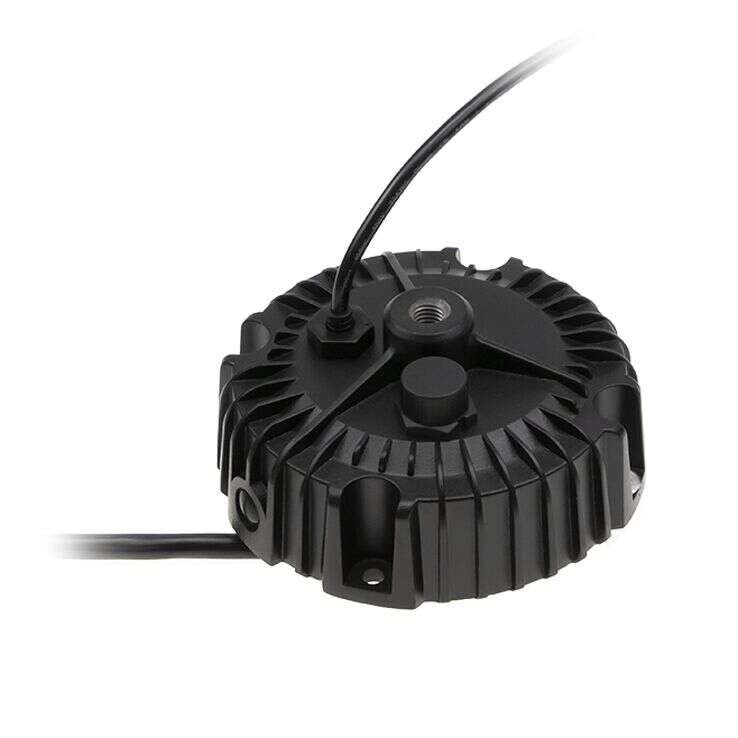

XBG-100 Series

100W Constant Power Mode LED Driver

XBG-100

XBG-100 Series Main Features:

Full power output at 70-100% constant current mode operation

Wide input range 90-305VAC with active PFC function

Models:

Manufacturer:

Type:

Other features:

XBG-100-A / XBG-100-A-C
XBG-100-AB / XBG-100-AB-C

MEAN WELL

Outdoor Circular Shape Design LED Driver

Patented metal housing design with IP67

Function options: output current adjustable,
3 in 1 dimming (dim to off and Isolation) de-sign

Typical lifetime >50000 hours and 5
years warranty

AC input cable with connector for flexible
applications

Quote Request

    XBG-100-AXBG-100-A-CXBG-100-ABXBG-100-AB-C
    Wattage100100100100
    Input Voltage90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC
    Output Voltage60606060
    Output Current2100mA2100mA2100mA2100mA
    Output Voltage OptionsSingleSingleSingleSingle
    DC Output Adjustment1750-2780mA1750-2780mA1750-2780mA1750-2780mA
    DC Output Adjustment27~56V27~56V27~56V27~56V
    Dimensions130x56130x56130x56130x56
    Working Temperature-40-+85°C
    Satety StandardsUL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; IS15885(Part2/Sec13); GB19510.1,GB19510.14; IP67;EAC TP TC 004 approved
    EMC StandardsEN55015(CISPR15), EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
