Home / LED Driver Outdoor Circular Shape Design / XBG-160

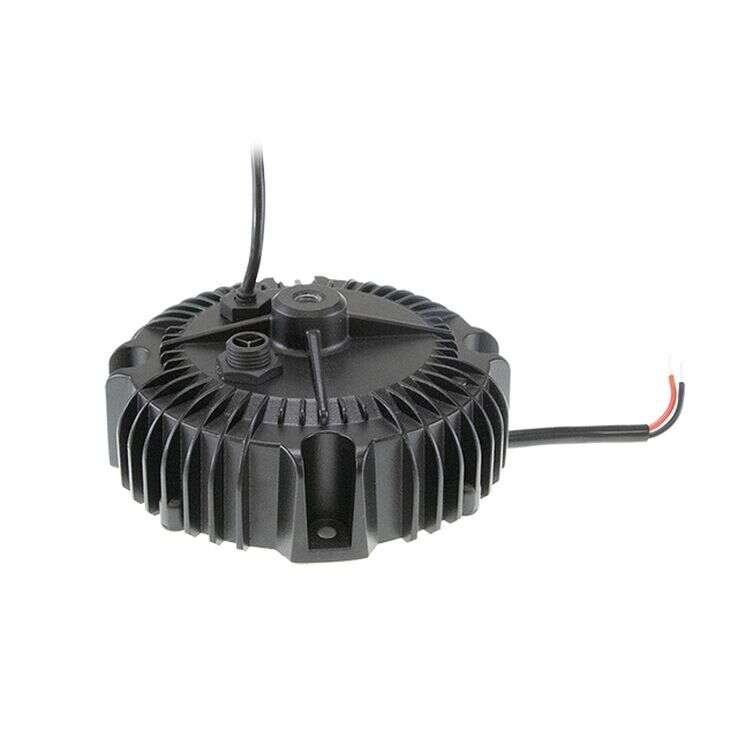

XBG-160 Series
160W Constant Power Mode LED Driver
XBG-160 Series Main Features:
Full power output at 70-100% constant current mode operation
Wide input range 90-305VAC with active PFC function
Models:
Manufacturer:
Type:
Other features:
XBG-160-A / XBG-160-A-C
XBG-160-AB / XBG-160-AB-C
MEAN WELL
Outdoor Circular Shape Design LED Driver
Patented metal housing design with IP67
Function options: output current adjustable,
3 in 1 dimming (dim to off and Isolation) de-sign
Typical lifetime >50000 hours and 5
years warranty
AC input cable with connector for flexible
applications
Constant power adjustable via built-in potentiometer
Quote Request
| XBG-160-A | XBG-160-A-C | XBG-160-AB | XBG-160-AB-C | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 160 | 160 | 160 | 160 | ||||||||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | ||||||||||||
| Output Voltage | 60 | 60 | 60 | 60 | ||||||||||||
| Output Current | 3300mA | 3300mA | 3300mA | 3300mA | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 2850~4100mA | 2850~4100mA | 2850~4100mA | 2850~4100mA | ||||||||||||
| Dimensions | 151.5x60 | 151.5x60 | 151.5x60 | 151.5x60 | ||||||||||||
| Working Temperature | -40-+90°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; IS15885(Part2/Sec13);GB19510.1,GB19510.14;IP67;EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55015(CISPR15),GB/T 17743, BS EN/EN61000-3-2,GB17625.1, BS EN/EN61000-3-3 | |||||||||||||||
