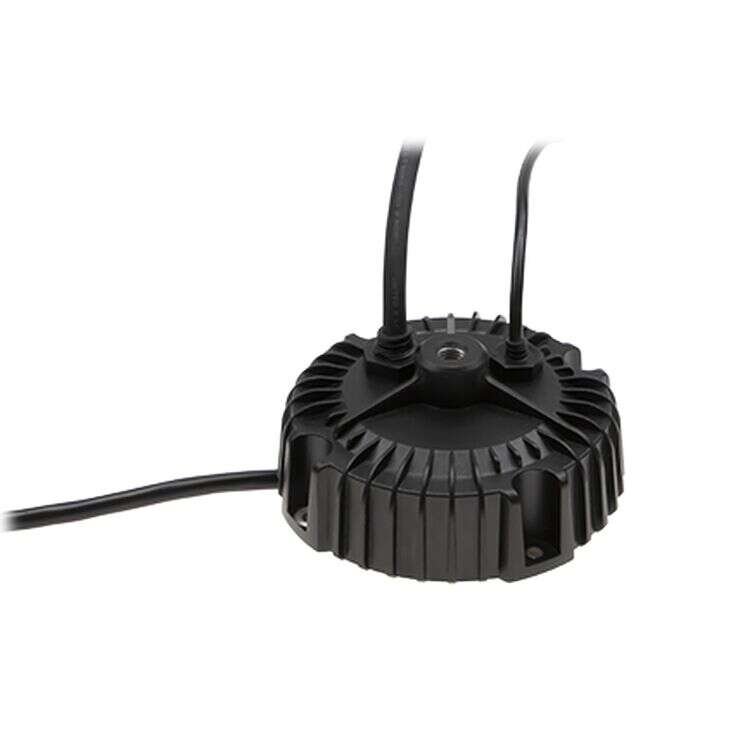

XBG-240 Series
240W Constant Power Mode LED Driver
XBG-240 Series Main Features:
Full power output at 70-100% constant current mode operation
Wide input range 90-305VAC with active PFC function
Models:
Manufacturer:
Type:
Other features:
XBG-240-A / XBG-240-A-C
XBG-240-AB / XBG-240-AB-C
MEAN WELL
Outdoor Circular Shape Design LED Driver
Patented metal housing design with IP67
3 in 1 dimming design
Surge protection with 6kV /4kV
Typical lifetime >50000 hours and 5
years warranty
AC input cable with connector for flexible
applications
Quote Request
| XBG-240-A | XBG-240-A-C | XBG-240-AB | XBG-240-AB-C | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 240 | 240 | 240 | 240 | ||||||||||||
| Input Voltage | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | ||||||||||||
| Output Voltage | 240 | 240 | 240 | 240 | ||||||||||||
| Output Current | 4900mA | 4900mA | 4900mA | 4900mA | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 4000~5700mA | 4000~5700mA | 4000~5700mA | 4000~5700mA | ||||||||||||
| Dimensions | 176x65 | 176x65 | 176x65 | 176x65 | ||||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; IS15885(Part2/Sec13); GB19510.1,GB19510.14; IP67;EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55015(CISPR15),GB/T 17743, BS EN/EN61000-3-2,GB17625.1, BS EN/EN61000-3-3, BS EN/EN61000-4-2 | |||||||||||||||
