XLG-100 Series

100W Constant Power Mode LED Driver

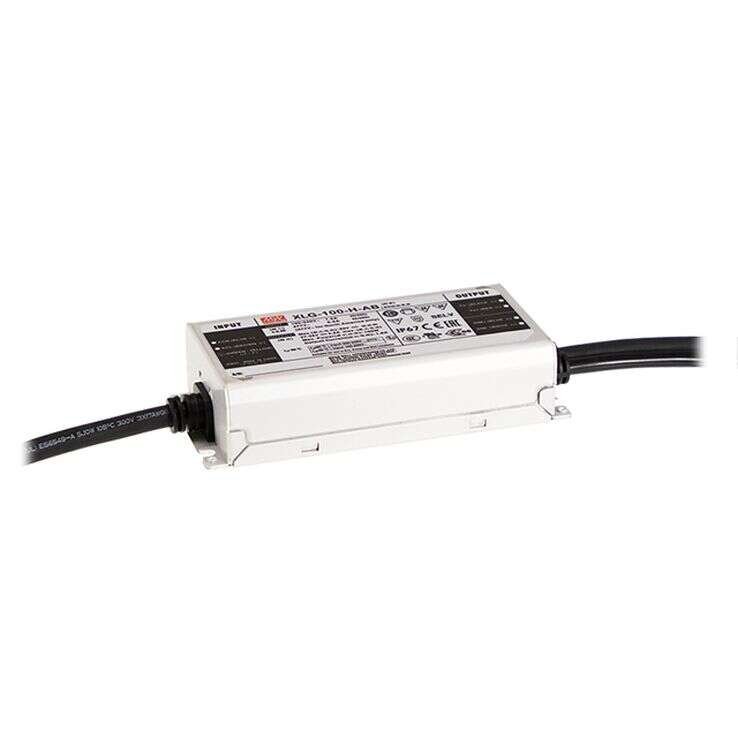

XLG-100-A

XLG-100 Series Main Features:

Full power output at 70~100% Constant power mode operation

Wide input range 100~305VAC (Class I)

Metal case with IP67 , suitable for outdoor application

Models:

Manufacturer:

Type:

Other features:

XLG-100-12-A / XLG-100-12-AB
XLG-100-24-A / XLG-100-24-AB

MEAN WELL

Outdoor With Dimming LED Driver

Surge protection with 6KV/4KV(10KV/
6KV optional)

LVLE(H type), Class 2(24V) power unit

IP67 rating for indoor or outdoor installations

3 in 1 dimming function (Dim to off
and isolation design)

India (EESL) version with Input Over
Voltage Protection can survive input
voltage stress of 440Vac for 48 hours

Life time >50,00 hours and 5 years warranty

Quote Request

    XLG-100-12-AXLG-100-12-ABXLG-100-24-AXLG-100-24-AB
    Wattage96969696
    Input Voltage100~305VAC
    142~431VDC    		100~305VAC
    142~431VDC    		100~305VAC
    142~431VDC    		100~305VAC
    142~431VDC
    Output Voltage12V12V24V24V
    Dimensions140x63x32140x63x32140x63x32140x63x32
    Working Temperature-40-+90°C
    Satety StandardsUL8750(type”HL”), UL879, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.1,GB19510.14;EAC TP TC 004;J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13, IS15885(Part2/Sec13)(for XLG-100I type only);NOM-058-SCFI-2017(except for Blank type); IP67 approved
    EMC StandardsBS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 , BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11
