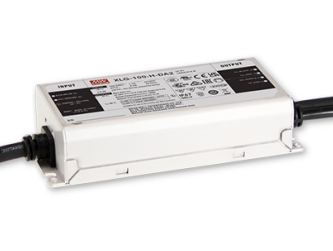

XLG-100-DA2 Series
DALI-2 Constant Current LED Drivers 100W
XLG-100-DA2 Series Main Features:
Wide input range 100~305VAC (Class I)
Full power output at 70~100% constant power mode operation
Metal case with IP67, suitable for outdoor application
Models:
Manufacturer:
Type:
Other features:
XLG-100-L-DA2 / XLG-100-H-DA2
MEAN WELL
Outdoor With Dali LED Driver
Surge protection with 6KV/4KV
DALI-2 dimming with minimum level 8%
India (EESL) version with input over
voltage protection can survive input
voltage stress of 440VAC for 48 hours
Protection functions: SCP/OTP
Life time >50,000hrs. and 5 years warranty
Quote Request
| XLG-100-L-DA2 | XLG-100-H-DA2 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 100 | 100 | ||||||||||||||
| Input Voltage | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | ||||||||||||||
| Output Voltage | 158V | 60V | ||||||||||||||
| Dimensions | 140x63x32 | 140x63x32 | ||||||||||||||
| Working Temperature | -40-+90°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC Input: 176-280Vdc) independent ,BS EN/EN62384;IS 15885(Part2/Sec13)(for XLG-100I-DA2 only); GB19510.1,GB19510.14; EAC TP TC 004; IP67 approved | |||||||||||||||
| EMC Standards | BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 , BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11 | |||||||||||||||
