Home / LED Driver Outdoor With Dimming / XLG-150

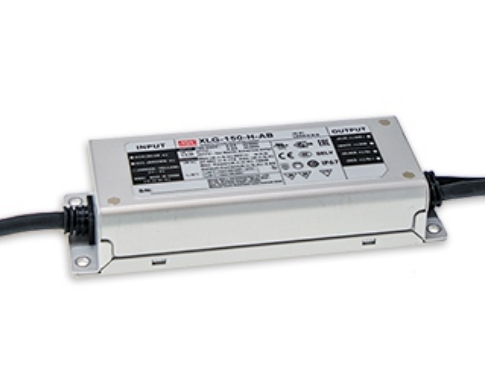

XLG-150 Series

150W Constant Power Mode LED Driver

XLG-150 Series Main Features:

Full power output at 70~100% Constant power mode operation

Wide input range 100~305VAC (Class I)

Metal case with IP67 , suitable for outdoor application

Models:

Manufacturer:

Type:

Other features:

XLG-150-12-A / XLG-150-12-AB
XLG-150-24-A / XLG-150-24-AB

MEAN WELL

Outdoor With Dimming LED Driver

Surge protection with 6KV/4KV (10KV/
6KV optional)

3in1 dimming function (Dim to off
and Isolation design)

India (EESL) version with Input Over
Voltage Protection can survive input
voltage stress of 440Vac for 48 hours

Protection functions: OVP/SCP/OCP/OTP

Compliance to EN60335-1 household application

Life time >50,00 hours and 5 years warranty

Quote Request

    XLG-150-12-AXLG-150-12-ABXLG-150-24-AXLG-150-24-AB
    Wattage150150150150
    Input Voltage100~305VAC
    142~431VDC    		100~305VAC
    142~431VDC    		100~305VAC
    142~431VDC    		100~305VAC
    142~431VDC
    Output Voltage12V12V24V24V
    Dimensions180x63x35.5180x63x35.5180x63x35.5180x63x35.5
    Working Temperature-40-+90°C
    Satety StandardsUL8750(type”HL”), UL879,CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EN 60335-1 compliant to EN 60335-2-89 Annex BB, EN 60335-2-24 Annex CC;GB19510.1,GB19510.14;EAC TP TC 004; J61347-1(H29), J61347-2-13(H29), KC61347-1,KC61347-2-13,IS15885(Part2/Sec13)(for XLG-150I type only);NOM-058-SCFI-2017(except for Blank type);IP67 approved
    EMC StandardsBS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 , BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11
