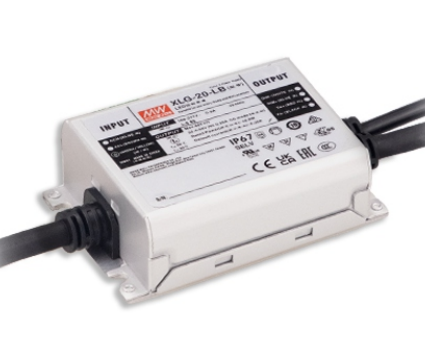

XLG-20 Series
21W Constant Current Mode LED Driver
XLG-20 Series Main Features:
Constant power mode output
Wide input range 90~305VAC (Class I)
Built-in active PFC function
Models:
Manufacturer:
Type:
Other features:
XLG-20-L / XLG-20-M
XLG-20-H
MEAN WELL
Outdoor With Dimming LED Driver
Class 2 power unit
No load power consumption <0.5W
IP67 rating for indoor or outdoor installations
3 in 1 dimming function (isolation design)
Life time >50,00 hours and 5 years warranty
Quote Request
| XLG-20-L | XLG-20-M | XLG-20-H | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 18.9 | 21 | 21 | |||||||||||||
| Input Voltage | 90~305VAC | 90~305VAC | 90~305VAC | |||||||||||||
| Output Voltage | 60V | 50V | 40V | |||||||||||||
| Dimensions | 95x63x30 | 95x63x30 | 95x63x30 | |||||||||||||
| Working Temperature | -40-+80°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC AS/NZS IEC BS EN/EN61347-1, AS/NZS BS EN/EN61347-2-13 independent, BS EN/EN62384; IP67; GB19510.1, GB19510.14, J61347-1(H29), J61347-2-13(H29), EAC TP TC 004, IS 15885(Part 2/Sec13) , KC61347-1,KC61347-2-13 approved | |||||||||||||||
| EMC Standards | BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 , BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11 | |||||||||||||||
