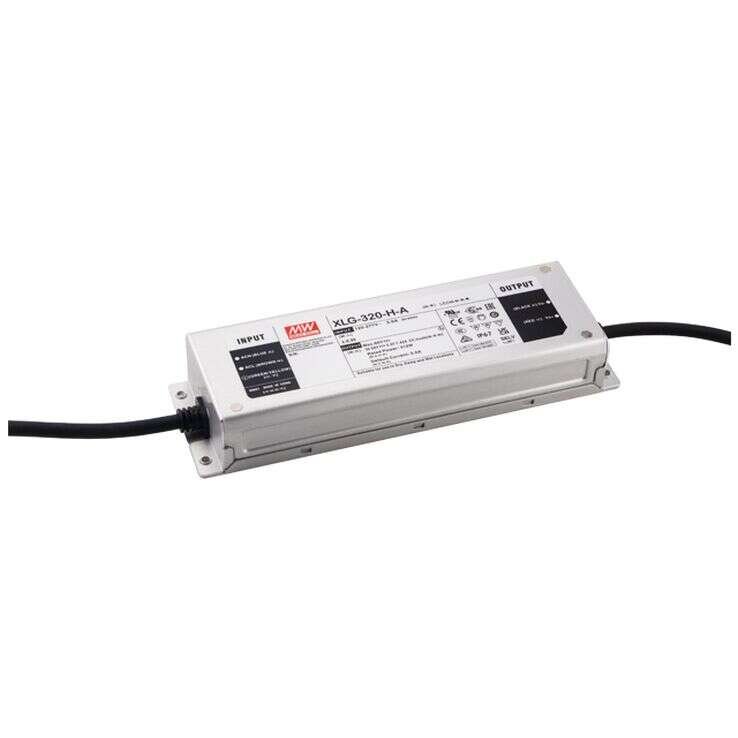

XLG-320 Series
315W Constant Power Mode LED Driver
XLG-320 Series Main Features:
Full power output at 75~100% Constant power mode operation
Wide input range 100~305VAC (Class I)
Metal case with IP67 , suitable for outdoor application
Models:
Manufacturer:
Type:
Other features:
XLG-320-L-A / XLG-320-L-AB
XLG-320-M-A / XLG-320-M-AB
XLG-320-H-A / XLG-320-H-AB
XLG-320-V-A / XLG-320-V-AB
MEAN WELL
Outdoor With Dimming LED Driver
Surge protection with 6KV/4KV
3in1 dimming function (Dim to off
and Isolation design)
Protection functions: OVP/SCP/OCP/OTP
Compliance to EN60335-1 household application
Life time >50,00 hours and 5 years warranty
Quote Request
| XLG-320-L-A | XLG-320-L-AB | XLG-320-M-A | XLG-320-M-AB | XLG-320-H-A | XLG-320-H-AB | XLG-320-V-A | XLG-320-V-AB | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 315 | 315 | 310.8 | 310.8 | 312 | 312 | 312 | 312 | ||||||||
| Input Voltage | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | ||||||||
| Output Voltage | 340V | 340V | 180V | 180V | 60V | 60V | NC | NC | ||||||||
| Dimensions | 246x77x39.5 | 246x77x39.5 | 246x77x39.5 | 246x77x39.5 | 246x77x39.5 | 246x77x39.5 | 246x77x39.5 | 246x77x39.5 | ||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EN/EN60335-1 compliant to EN 60335-2-89 Annex BB, EN 60335-2-24 Annex CC;GB19510.1, GB19510.14;EAC TP TC 004; IP67; IS15885(Part2/Sec13)(except for blank type), KC61347-1,KC61347-2-13 approved | |||||||||||||||
| EMC Standards | BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 , BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11 | |||||||||||||||
