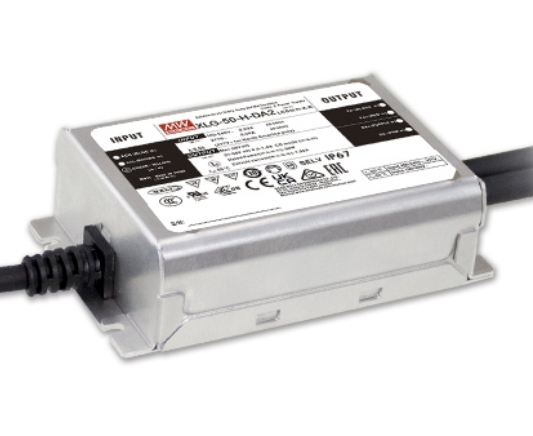

XLG-50-DA2 Series
DALI-2 Constant Current LED Drivers 50W
XLG-50-DA2 Series Main Features:
Constant power mode output
Metal housing design with functional ground
Built-in active PFC function
Models:
Manufacturer:
Type:
Other features:
XLG-50-L-DA2 / XLG-50-H-DA2
MEAN WELL
Outdoor With Dali LED Driver
Class 2 power unit (except for L type)
Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Surge protection with 6KV-4KV
DALI-2 dimming with minimum level 8%
India (EESL) version with input over
voltage protection can survive input
voltage stress of 440VAC for 48 hours
Typical lifetime >50000 hours
5 years warranty
Quote Request
| XLG-50-L-DA2 | XLG-50-H-DA2 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 50 | 50 | ||||||||||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | ||||||||||||||
| Output Voltage | 160V | 60V | ||||||||||||||
| Dimensions | 105x63x30 | 105x63x30 | ||||||||||||||
| Working Temperature | -40-+80°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC AS/NZS IEC BS EN/EN61347-1, BS EN/EN61347-2-13 (EL) appendix J suitable for emergency installations(DC Input: 176-280Vdc) independent, AS/NZS BS EN/EN61347-2-13 , BS EN/EN62384;IP67; IS 15885(Part2/Sec13)(for XLG-50I-DA2 only);GB19510.1, GB19510.14, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 , BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11 | |||||||||||||||
