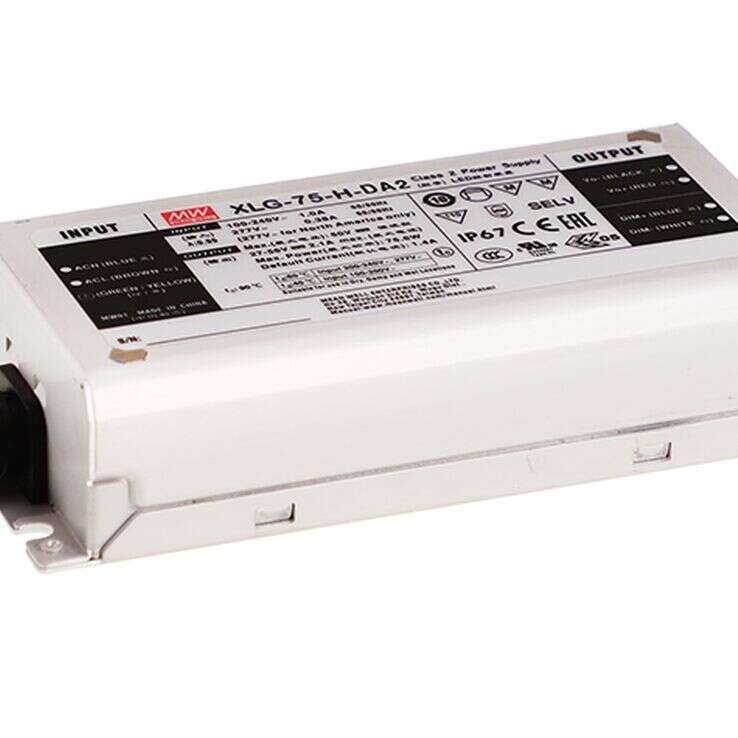

XLG-75-DA2 Series

DALI-2 Constant Current LED Drivers 74.9–75.6W

xlg-75da

XLG-75-DA2 Series Main Features:

Full power output at 70~100% constant power mode operation

Metal case with IP67, suitable for outdoor application

Models:

Manufacturer:

Type:

Other features:

XLG-75-L-DA2 / XLG-75-H-DA2

MEAN WELL

Outdoor With Dali LED Driver

Wide input range 100~305VAC (Class I)

Class 2 power unit (except for L type)

Surge protection with 6KV/4KV

DALI-2 dimming with minimum level 8%

India (EESL) version with input over
voltage protection can survive input
voltage stress of 440VAC for 48 hours

Protection functions: SCP/OTP

Life time >50,000hrs. and 5 years warranty

Quote Request

    XLG-75-L-DA2XLG-75-H-DA2
    Wattage74.975.6
    Input Voltage100~305VAC
    142~431VDC    		100~305VAC
    142~431VDC
    Output Voltage115V60V
    Dimensions140x63x32140x63x32
    Working Temperature-40-+90°C
    Satety StandardsUL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 (EL) appendix J suitable for emergency installations(DC Input: 176-280Vdc) independent, BS EN/EN62384; IS 15885(Part2/Sec13)(for XLG-75I-DA2 only); GB19510.1,GB19510.14; EAC TP TC 004; IP67 approved
    EMC StandardsBS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4 , BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11
