Home / AC-DC Security&Specific Type / ADD-155

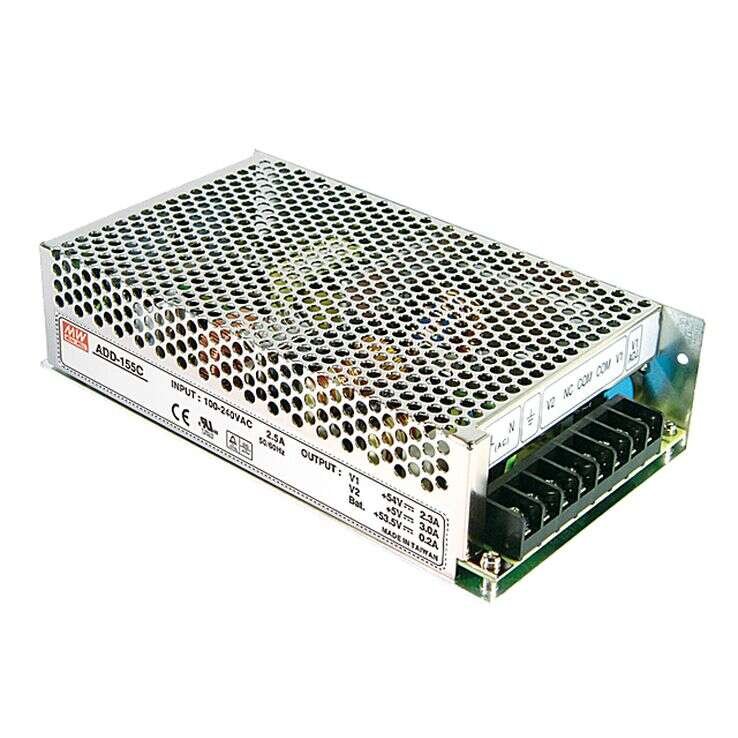

ADD-155 Series
Chargers 155W
ADD-155 Series Main Features:
PF> 0.92 230VAC and full load
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
AD-155A / AD-155B
ADD-155C
MEAN WELL
Security&Specific Power Supplies
Battery low protection
Universal AC input / Full range
Cooling by free air convection
Fixed switching frequency at 13kHz
Approvals: UL / CUL / TUV / CB / CE
100% full load burn-in test
2 years warranty
Quote Request
| ADD-155A | ADD-155B | ADD-155C | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 155 | 155 | 155 | |||||||||||||
| Input Voltage | 88~264VAC 124~370VDC | 88~264VAC 124~370VDC | 88~264VAC 124~370VDC | |||||||||||||
| Output Current | 0~10.5A, 0~3.0A, 0~0.5A | 0~5.0A, 0~3.0A, 0~0.5A | 0~2.5A, 0~3.99A, 0~0.2A | |||||||||||||
| Output Voltage | 13.8V, 5V, 13.3V | 27.6V, 5V, 27.1V | 54V, 5V, 53.5V | |||||||||||||
| Output Voltage Options | Dual | Triple | Triple | |||||||||||||
| Dimensions | 199x110x50 | 199x110x50 | ||||||||||||||
| Working Temperature | -10~+60°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11 | |||||||||||||||
