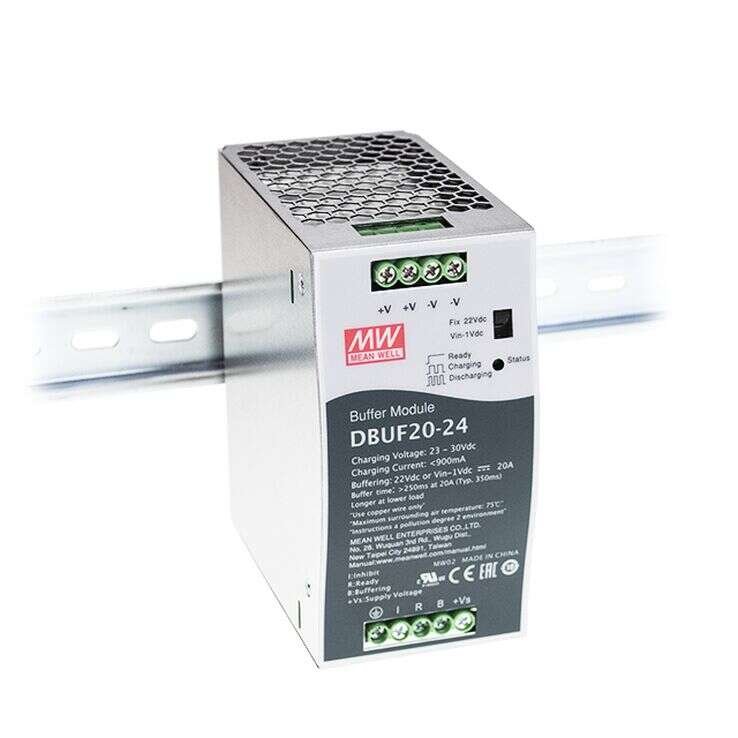

DBUF20 Series
24V/20A DIN Rail Type Buffer Module
DBUF20 Series Main Features:
The DBU20-24 buffer module is a supplementary device for regulated DC 24V power supplies.
Models:
Manufacturer:
Type:
Other features:
DBUF20-24
MEAN WELL
DIN Rail Power Supplies
Buffering with electrolytic capacitors instead of lead acid batteries
Type buffering time of 350ms @22Vdc/20A
Buffer mode selectable by switch: Fixed mode for Vin-1Vdc, Dynamic mode for Vin-1Vdc
LED indicator for signal status
Supports parallel connection to extend buffering time
Cooling by free air convection
-25~+75°C wide operating temperature
3 years warranty
Quote Request
| DBUF20-24 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | 63x125.2x114.9 | |||||||||||||||
| Working Temperature | -25-+80°C | |||||||||||||||
| Satety Standards | IEC62368-1,UL62368-1 approved | |||||||||||||||
| EMC Standards | EN55032 | |||||||||||||||
