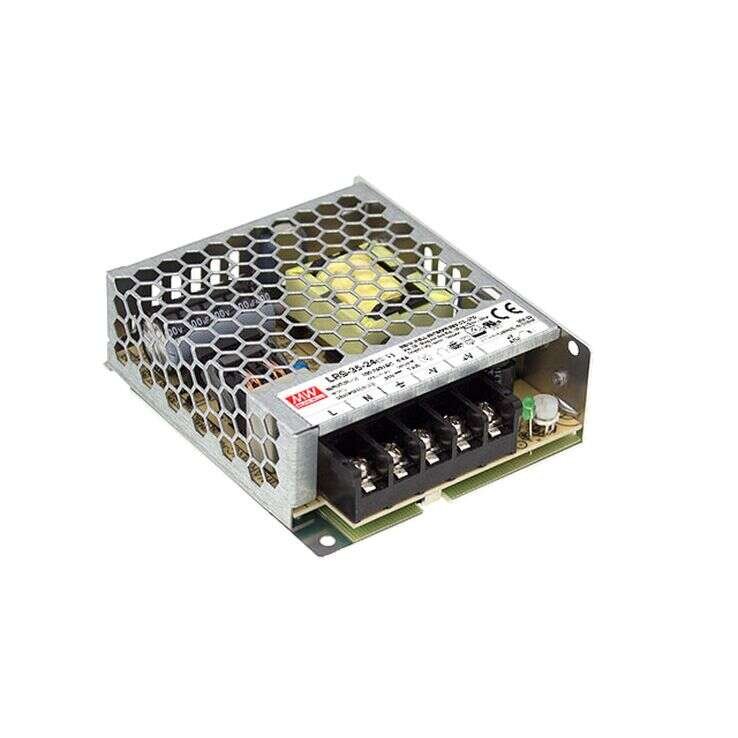

LRS-35 Series
Enclosed Power Supplies 35–38.4W
LRS-35 Series Main Features:
No Load power consumption <0.2W
Miniature size and 1U low profile
Protections: Short circuit/ Overload/ Over voltage.
Models:
Manufacturer:
Type:
Other features:
LRS-35-5 / LRS-35-12
LRS-35-15 / LRS-35-24
LRS-35-36 / LRS-35-48
MEAN WELL
Enclosed Power Supplies
Universal AC Input/ Full range
Withstand 300VAC surge input for 5 second
No load power consumption <0.2W
High operating temperature up to 70°C
Cooling by free air convection
Compliance to IEC/EN 60335-1 (PD3)
and IEC/EN61558-1, -2-16 for
household appliances
Operating altitude up to 5000 meters
Withstand 5G vibration test
High efficiency, Long life and high reliability
Quote Request
[wpforms id="1665" title="false"]
| LRS-35-5 | LRS-35-12 | LRS-35-15 | LRS-35-24 | LRS-35-36 | LRS-35-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 35 | 36 | 36 | 36 | 36 | 38.4 | ||||||||||
| Input Voltage | 85~264 VAC, 120~373 VDC | 85~264 VAC, 120~373 VDC | 85~264 VAC, 120~373 VDC | 85~264 VAC, 120~373 VDC | 85~264 VAC, 120~373 VDC | 85~264 VAC, 120~373 VDC | ||||||||||
| Output Current | 0~7.0 | 0~3.0 | 0~2.4 | 0~1.5 | 0~1 | 0~0.8 | ||||||||||
| Output Voltage | 5 | 12 | 15 | 24 | 36 | 48 | ||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | ||||||||||
| DC Output Adjustment | 4.5~5.5V | 10.2~13.8V | 13.5~18V | 21.6~28.8V | 32.4~39.6V | 43.2~52.8V | ||||||||||
| Dimensions | 99 x 82 x 30 | 99 x 82 x 30 | 99 x 82 x 30 | 99 x 82 x 30 | 99 x 82 x 30 | 99 x 82 x 30 | ||||||||||
| Working Temperature | -20~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16,CCC GB4943 Approved | |||||||||||||||
| EMC Standards | EN55022, GB9254 Class B, EN55014, EN61000-3-2,-3, EN61000-4-2,-3,4,5,6,8,11, EN61000-6-2 (EN50082-2), Heavy Industry level, Criteria A | |||||||||||||||
