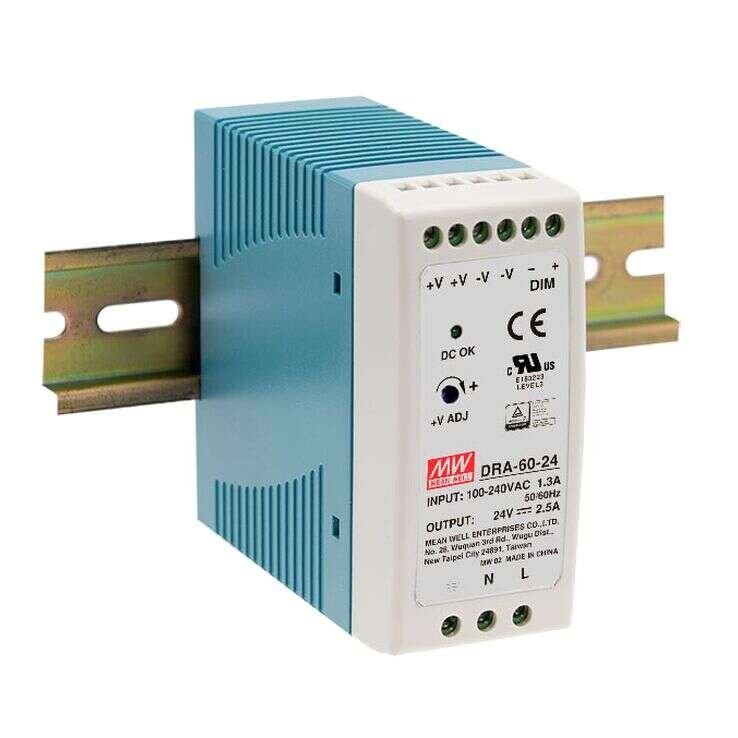

DRA-60 Series
DIN Rail Power Supplies 60W
DRA-60 Series Main Features:
DRA-60 is one 60W AC/DC DIN rail power supply, featuring the adjustable output current. Users are able to easily change the constant output current level, via 1~10Vdc, PWM signal or resistance.
Models:
Manufacturer:
Type:
Other features:
DRA-60-12 / DRA-60-24
MEAN WELL
DIN Rail Power Supplies
Universal AC input/Full range
Protections: Short circuit / Overload / Over voltage
Can be installed on DIN rail TS35/7.5 or 15
Output voltage adjustable through internal potentiometer
Output current adjustable through external 1~10Vdc, PWM signal or resistance
Cooling by free air convection
Pass LPS
LED indicator to power on
100% full load burn-in test
3 years warranty
Quote Request
| DRA-60-12 | DRA-60-24 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 60 | ||||||||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | ||||||||||||||
| Output Current | 5A | 2.5A | ||||||||||||||
| Output Voltage | 12V | 24V | ||||||||||||||
| DC Output Adjustment | 3~12V | 3~24V | ||||||||||||||
| Dimensions | 40x90x100 | 40x90x100 | ||||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV EN62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to EN55032 (CISPR32) Class B, EN61000-3-2, -3, EAC TP TC 020 | |||||||||||||||
