Home / AC-DC Security&Specific Type / DRC-180

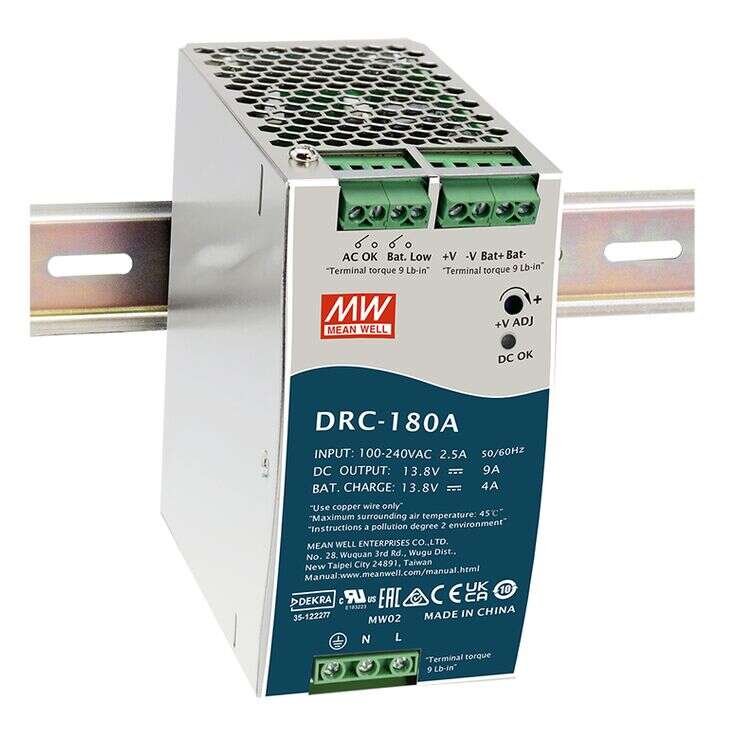

DRC-180 Series
Chargers 179.4W
DRC-180 Series Main Features:
DRC-180 is a 180W AC/DC DIN rail type security power supply series
Universal AC input/Full range
Built-in active PFC function
Alarm signal for AC OK and Battery Low ( via relay)
Models:
Manufacturer:
Type:
Other features:
DRC-180A / DRC-180B
MEAN WELL
Security&Specific Power Supplies
Protections: Short circuit/ Overload/
Over voltage/Over temperature
Battery low protection/ Battery
reverse polarity protection by fuse
Cooling by free air convection
-20~70°C wide operating temperature
Can be installed on DIN rail TS-35/7.5 or 15
DC output voltage adjustable (+20%)
LED indication for power on
3 years warranty
Quote Request
| DRC-180A | DRC-180B | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 179.4 | 179.4 | ||||||||||||||
| Input Voltage | 90-264VAC | 90-264VAC | ||||||||||||||
| Output Current | 9A, 4A | 4.5A, 2A | ||||||||||||||
| Output Voltage | 13.8V | 27.6V | ||||||||||||||
| Dimensions | 63x125.2x115 | 63x125.2x115 | ||||||||||||||
| Working Temperature | -20~70°C | |||||||||||||||
| Satety Standards | UL62368-1, Dekras BS EN/EN62368-1, EAC TP TC 004, AS/NZS 62368.1approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32) | |||||||||||||||
