Home / AC-DC DIN Rail Type / DRDN20

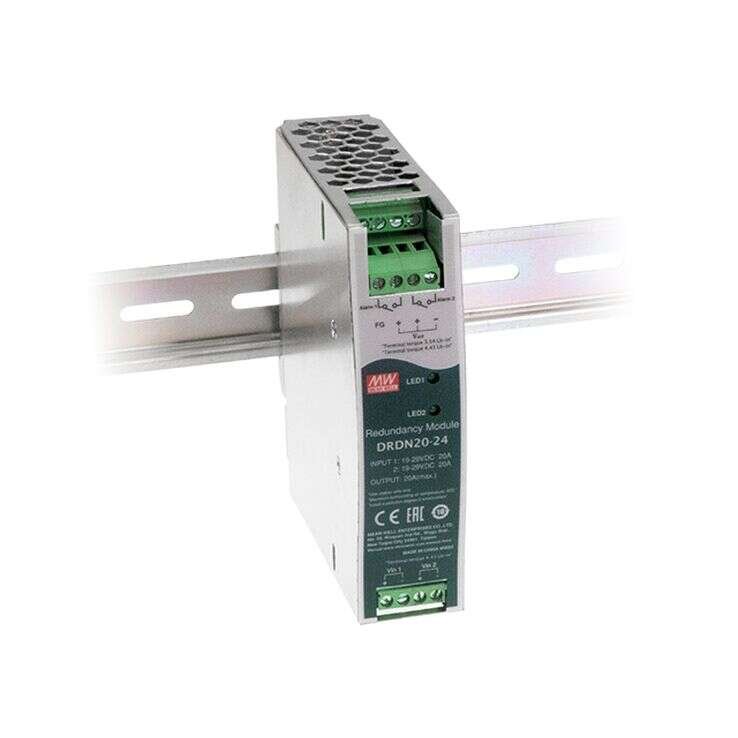

DRDN20 Series
20A DIN Rail Type Redundancy Module
DRDN20 Series Main Features:
Support 1+1 and N+1 redundancy system
2 channels input and 1 output
Models:
Manufacturer:
Type:
Other features:
DRDN20-12 / DRDN20-24
DRDN20-48
MEAN WELL
DIN Rail Power Supplies
Suitable for redundancy operation of 12V/24V/48 system
Output current up to 20A
Cooling by free air convection
-40~+80 ultra-wide operating temperature (+60 derating)
32 mm slim width
Built-in 2 channels DC OK signal and alarm relay contact
Installed on DIN Rail TS35/7.5 or 15
3 years warranty
Quote Request
| DRDN20-12 | DRDN20-24 | DRDN20-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Current | 0-20A | 0-20A | 0-20A | |||||||||||||
| Output Voltage | 12 | 24 | 48 | |||||||||||||
| Output Voltage Option | Single | Single | Single | |||||||||||||
| Dimensions | 32x125.2x102 | 32x125.2x102 | 32x125.2x102 | |||||||||||||
| Working Temperature | -40-+80°C | |||||||||||||||
| Satety Standards | IEC62368-1, UL62368-1,approved EAC TP TC 004 | |||||||||||||||
| EMC Standards | EN55032(CISPR32), EN61000-4-2,3,4,5,6,8 | |||||||||||||||
