Home / AC-DC Security&Specific Type / DRS-480

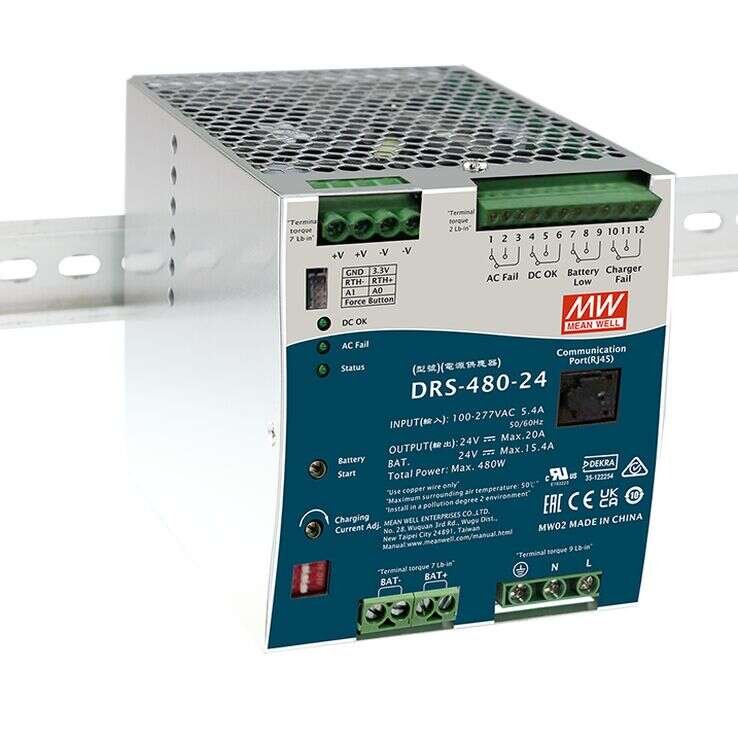

DRS-480 Series
DIN Rail Power Supplies 480W
DRS-480 Series Main Features:
DRS-480 is a 480W AC/DC DIN RAIL type security power supply series.
Models:
Manufacturer:
Type:
Other features:
DRS-480-24 / DRS-480-36
DRS-480-48
MEAN WELL
Security&Specific Power Supplies
Universal input 90~305VAC
All-in-one function with Power supply,
DC-UPS, battery charger and
status monitoring in ONE compact unit
Built-in MODBus protocol, CANBus optional
Load-dependent high speed battery charging
-30~70°C wide operating temperature
Cooling by free air convection
20~100% Charging current adjustable by VR
3 years warranty
Quote Request
| DRS-480-24 | DRS-480-36 | DRS-480-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 480 | 480 | 480 | |||||||||||||
| Input Voltage | 90-305VAC, 127~431VDC | 90-305VAC, 127~431VDC | 90-305VAC, 127~431VDC | |||||||||||||
| Output Current | 15.4A | 7.7A | 7.7A | |||||||||||||
| Output Voltage | 24V | 36V | 48V | |||||||||||||
| Output Voltage Option | Single | Single | Single | |||||||||||||
| Dimensions | 110x125.2x150.7 | 110x125.2x150.7 | 110x125.2x150.7 | |||||||||||||
| Working Temperature | -30~70°C | |||||||||||||||
| Satety Standards | UL62368-1, Dekra BS EN/EN62368-1, RCM AS/NE62368.1 approve; EAC TP TC 004pending | |||||||||||||||
| EMC Standards | BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8 | |||||||||||||||
