Home / AC-DC DIN Rail Type / EDR-150

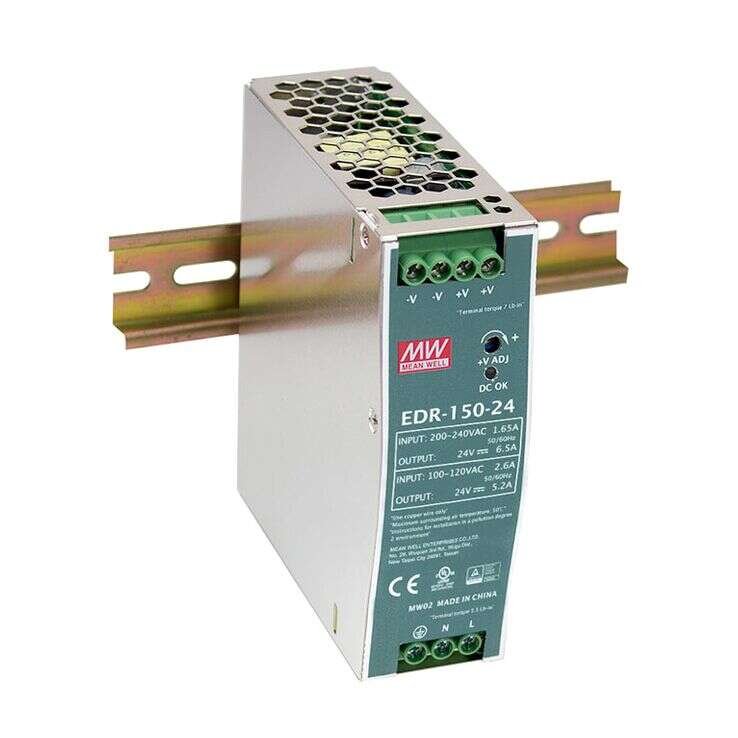

EDR-150 Series
DIN Rail Power Supplies 150W
EDR-150 Series Main Features:
All AC input/ Full range
Can be installed on DIN rail TS-35/7.5 or 15
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
EDR-150-24
MEAN WELL
DIN Rail Power Supplies
Cooling by free air convection
UL508 (industrial control equipment) approved
EN61000-6-2 (EN50082-2) industrial immunity level
100% full load burn-in test
2 years warranty
Quote Request
| EDR-150-24 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 150 | |||||||||||||||
| Input Voltage | 90-264VAC 127-370VDC | |||||||||||||||
| Output Current | 6.5A | |||||||||||||||
| Output Voltage | 24 | |||||||||||||||
| Output Voltage Option | Single | |||||||||||||||
| DC Output Adjustment | 24-28V | |||||||||||||||
| Dimensions | 40x125.2x113.5 | |||||||||||||||
| Working Temperature | -20-+60°C | |||||||||||||||
| Satety Standards | UL508, TUV EN60950-1 approved; (meet EN60204-1) | |||||||||||||||
| EMC Standards | Compliance to EN55032 (CISPR32) Class A, EN61000-3-2,Class A EN61000-3-2, Class A (less 80% Load) EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), Heavy industry level, criteria A | |||||||||||||||
