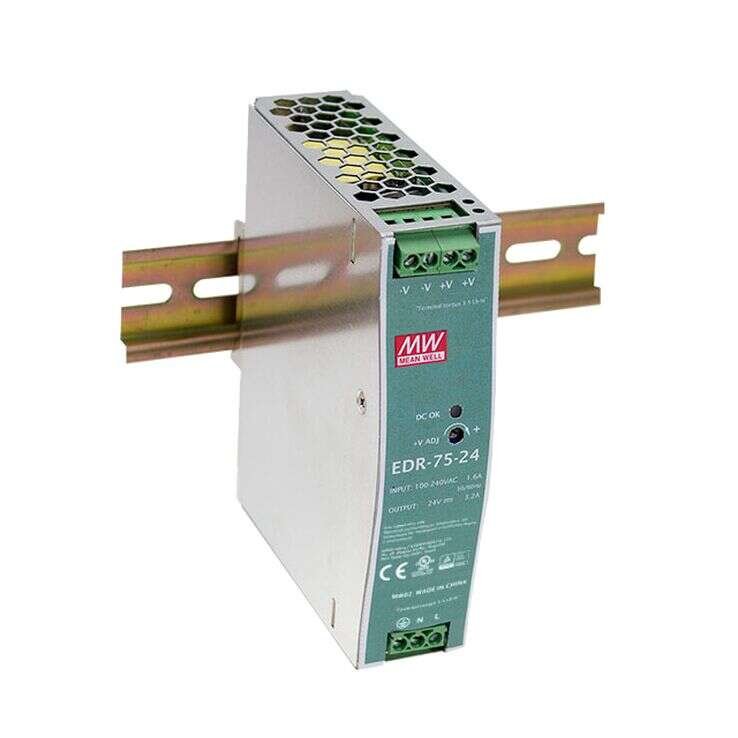

EDR-75 Series
DIN Rail Power Supplies 75W
HDR-30 Series Main Features:
All AC input/ Full range
Can be installed on DIN rail TS-35/7.5 or 15
Protections: Short circuit / Overload/ Over voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
EDR-75-12 / EDR-75-24
EDR-75-48
MEAN WELL
DIN Rail Power Supplies
Cooling by free air convection
UL508 (industrial control equipment) approved
EN61000-6-2 (EN50082-2) industrial immunity level
100% full load burn-in test
2 years warranty
Quote Request
| EDR-75-12 | EDR-75-24 | EDR-75-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 75 | 75 | 75 | |||||||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | |||||||||||||
| Output Current | 0~6.3A | 3.2A | 1.6A | |||||||||||||
| Output Voltage | 12 | 24 | 48 | |||||||||||||
| Output Voltage Option | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 12-14VDC | 24-28VDC | 48-55V | |||||||||||||
| Dimensions | 32x125.2x102 | 32x125.2x102 | 32x125.2x102 | |||||||||||||
| Working Temperature | -20~+60°C | |||||||||||||||
| Satety Standards | UL508, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | Complience to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3 Complience to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, Heavy industry level, criteria A | |||||||||||||||
