Home / AC-DC Open Frame Type / ELP-75

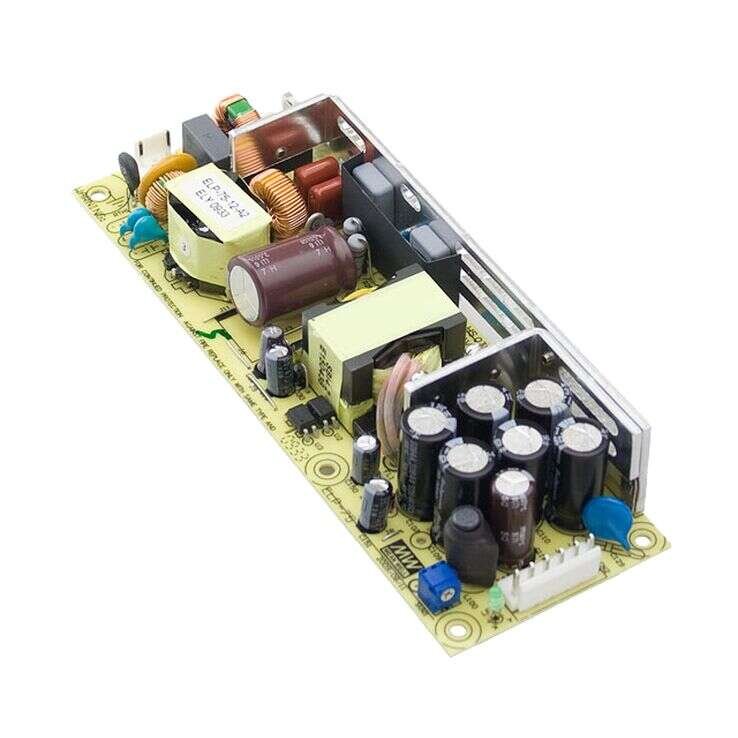

ELP-75 Series
Open Frame Power Supplies 75W
ELP-75 Series Main Features:
No load power consumption <0.5W
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
EPS-75-3.3 / EPS-75-5
EPS-75-12 / EPS-75-15
EPS-75-24 / EPS-75-36
EPS-75-48
MEAN WELL
Open Frame Power Supplies
Universal AC Input / Full range
Cooling by free air convection
LED indicator for power on
3 years warranty
Quote Request
| ELP-75-3.3 | ELP-75-5 | ELP-75-12 | ELP-75-15 | ELP-75-24 | ELP-75-36 | EPS-75-48 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | |||||||||
| Output Current | 0~15A | 0~15A | 0~6.25A | 0~5A | 0~3.15A | 0~2.1A | 0~1.6A | |||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 24V | 36V | 48V | |||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | |||||||||
| DC Output Adjustment | 3~3.6V | 4.75~5.5V | 10.8~13.2V | 13.5~16.5V | 21.6~26.4V | 32.4~39.6V | 43.2~52.8V | |||||||||
| Dimensions | 175x60x27 | 175x60x27 | 175x60x27 | 175x60x27 | 175x60x27 | 175x60x27 | 175x60x27 | |||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11 | |||||||||||||||
