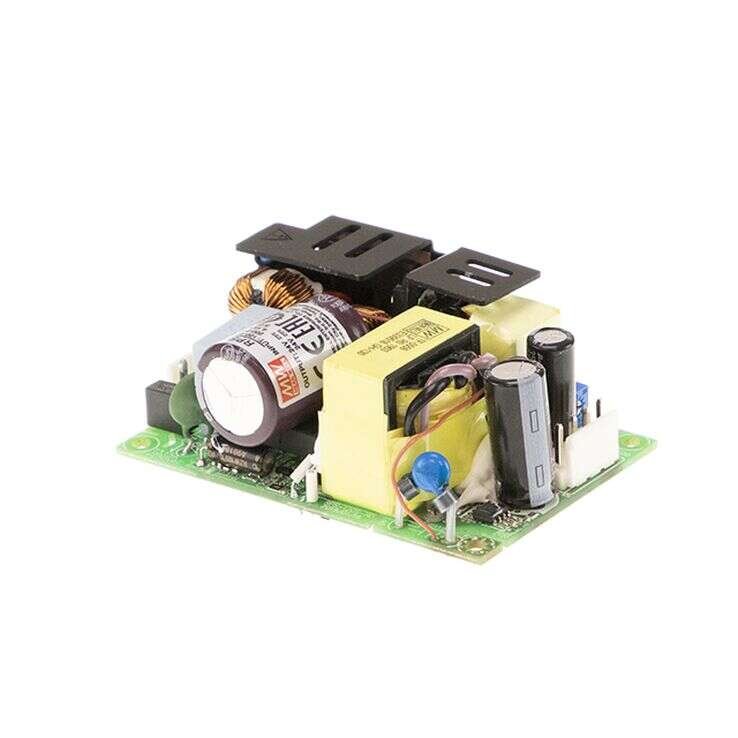

EPP-120S Series
Open Frame Power Supplies 114–199.9W
EPP-120S Series Main Features:
EPP-120S is a 120W highly reliable green PCB type power supply with a high power density on the 3" by 2"footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V.
Models:
Manufacturer:
Type:
Other features:
EPP-120S-12 / EPP-120S-15
EPP-120S-24 / EPP-120S-27
EPP-120S-48
MEAN WELL
Open Frame Power Supplies
3" x 2" compact size
120W convection, 150W peak (10 sec)
EMI for both Class I & Class II configuration
No load power consumption <0.3W
High efficiency up to 94%
Protections: Short circuit / Overload /
Over voltage / Over temperature
Operating altitude up to 5000
meters (Note.5)
3 years warranty
Quote Request
| EPP-120S-12 | EPP-120S-15 | EPP-120S-24 | EPP-120S-27 | EPP-120S-48 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 114 | 114 | 120 | 199.9 | 120 | |||||||||||
| Input Voltage | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | |||||||||||
| Output Current | 9.5A | 7.6A | 5A | 4.44A | 2.5A | |||||||||||
| Output Voltage | 12V | 15V | 24V | 27V | 48V | |||||||||||
| DC Output Adjustment | 11.4~12.6V | 14.3~15.8V | 22.8~25.2V | 25.6~28.4V | 45.6~50.4V | |||||||||||
| Dimensions | 76.2x50.8x28 | 76.2x50.8x28 | 76.2x50.8x28 | 76.2x50.8x28 | 76.2x50.8x28 | |||||||||||
| Working Temperature | -30~+85°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV EN62368-1, EN60335-1, IEC62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | EN55032 (CISPR32), EN61000-3-2, EN61000-3-3 | |||||||||||||||
