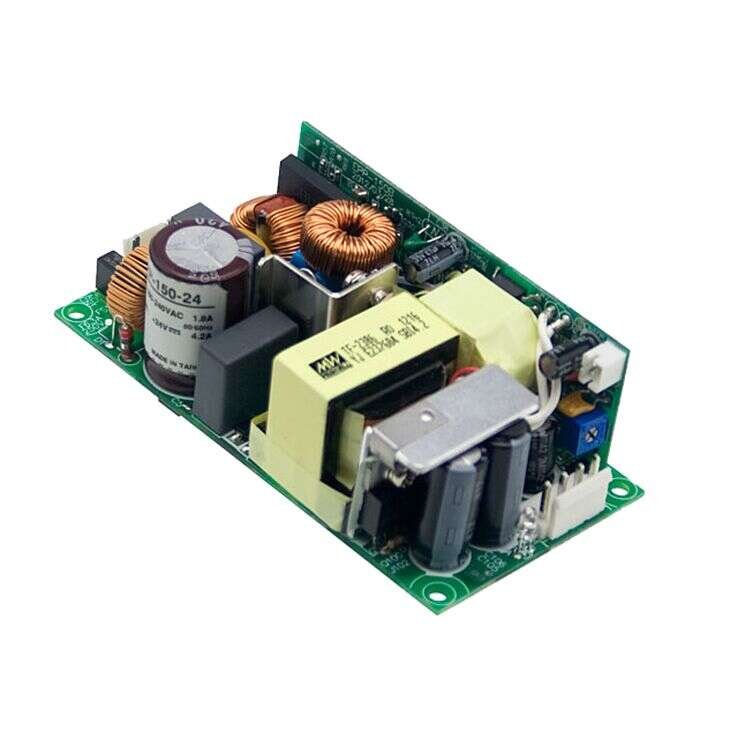

EPP-150 Series

Open Frame Power Supplies 150W

EPP-150

EPP-150 Series Main Features:

No load power consumption<0.5W

Built-in active PFC function

Protections: Short circuit/Overload/Over voltage/Over temperature

Models:

Manufacturer:

Type:

Other features:

EPP-150-12 / EPP-150-15
EPP-150-24 / EPP-150-27
EPP-150-48

MEAN WELL

Open Frame Power Supplies

Universal AC Input / Full range

4" x 2" compact size

High efficiency up to 92.5%

100W free air convection, 150W with 20
CFM forced air

LED indicator for power on

Built-in 12V/0.3A auxiliary output

3 years warranty

Quote Request

    EPP-150-12EPP-150-15EPP-150-24EPP-150-27EPP-150-48
    Wattage150150150150150
    Input Voltage90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC
    Output Current0~12.5A0~10A0~6.25A0~5.56A0~3.125A
    Output Voltage12V15V24V27V48V
    Output Voltage OptionsSingleSingleSingleSingleSingle
    DC Output Adjustment11.76~12.6V14.7~15.75V23.52~25.2V26.46~28.35V47.04~50.4V
    Dimensions101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29
    Working Temperature-30~+70°C
    Satety StandardsUL60950-1, TUV EN60950-1 approved
    EMC StandardsCompliance to EN55022 (CISPR22), EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, heavy industry level, criteria A
