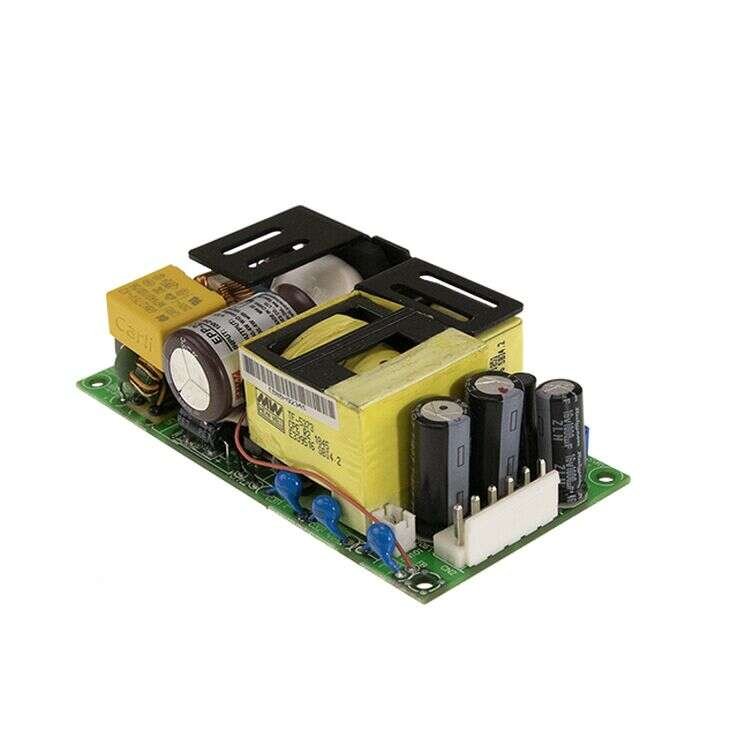

EPP-200 Series

Open Frame Power Supplies 200.4–202.5W

EPP-200

EPP-200 Series Main Features:

No load power consumption <0.5W

Protections: Short circuit / Overload / Over voltage / Over temperature

Models:

Manufacturer:

Type:

Other features:

EPP-200-12 / EPP-200-15
EPP-200-24 / EPP-200-27
EPP-200-48

MEAN WELL

Open Frame Power Supplies

4"x2" miniature size

High efficiency up to 94%

Universal AC input / Full range

Built-in active PFC function

Built-in 12V/0.5A FAN supply

Cooling by free air convection

LED indicator for power on

3 years warranty

Quote Request

    EPP-200-12EPP-200-15EPP-200-24EPP-200-27EPP-200-48
    Wattage200.4201201.6202.5201.6
    Input Voltage80-264VAC80-264VAC80-264VAC80-264VAC80-264VAC
    Output Current16.7A13.4A8.4A7.5A4.2A
    Output Voltage12V15V24V27V48V
    Output Voltage OptionsSingleSingleSingleSingleSingle
    DC Output Adjustment11.4~12.614.3~15.8V22.8~25.2V25.6~28.4V45.6~50.4V
    Dimensions101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29
    Working Temperature-30~+70°C
    Satety StandardsUL60950-1, TUV EN60950-1, IEC 60950-1 approved
    EMC StandardsCompliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 Compliance EN61000-4-2,3,4,5,6,8,11 EN55024, EN61000-6-2, heavy industry level, criteria A
