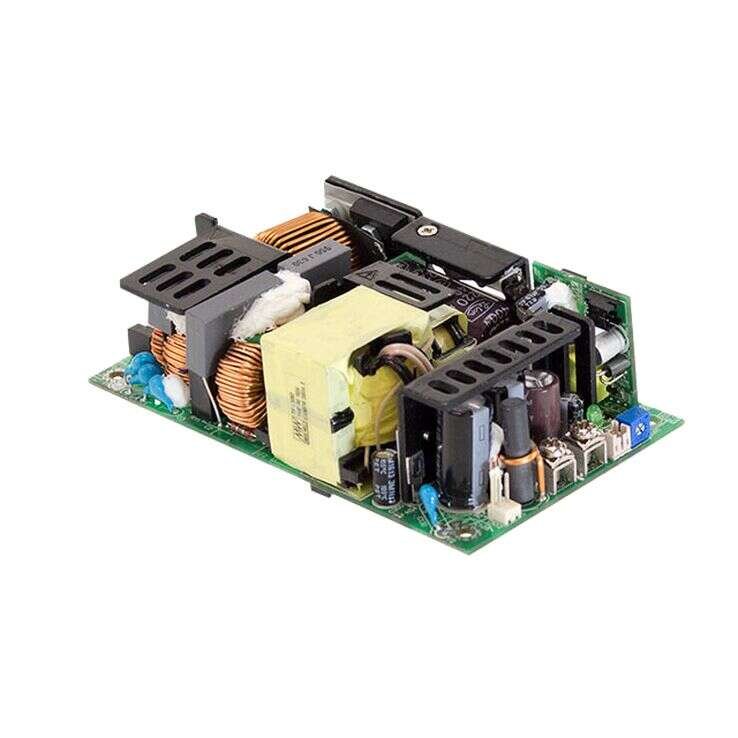

EPP-400 Series
Open Frame Power Supplies 399.6–403.2W
EPP-400 Series Main Features:
No load power consumption<0.3W
250W Convection, 400W force air
Protections: Short circuit / Overload / Over voltage / Over temperature
Models:
Manufacturer:
Type:
Other features:
EPP-400-12 / EPP-400-15
EPP-400-18 / EPP-400-24
EPP-400-27 / EPP-400-36
EPP-400-48
MEAN WELL
Open Frame Power Supplies
Universal input 80-264VAC
Built-in active PFC function
No load power consumption <0.5W
No load power consumption <0.5W
Built-in 12V/0.5A FAN supply standby 5V
@ 1A with fan, 0.6A without fan
Built-in remote sense function
Output 18V available (optional)
3 years warranty
Quote Request
| EPP-400-12 | EPP-400-15 | EPP-400-18 | EPP-400-24 | EPP-400-27 | EPP-400-36 | EPP-400-48 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 399.6 | 400.5 | 401.4 | 400.8 | 402.3 | 403.2 | 403.2 | |||||||||
| Input Voltage | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | |||||||||
| Output Current | 0~33.3A | 0~26.7A | 0~22.3A | 0~16.7A | 0~14.9A | 0~11.2A | 0~8.4A | |||||||||
| Output Voltage | 12V | 15V | 18V | 24V | 27V | 36V | 48V | |||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | |||||||||
| DC Output Adjustment | 11.4-12.6V | 14.3-15.8V | 17.1-18.9V | 22.8-25.2V | 25.6-28.4V | 34.2-37.8V | 45.6-50.4V | |||||||||
| Dimensions | 127x76.2x35 | 127x76.2x35 | 127x76.2x35 | 127x76.2x35 | 127x76.2x35 | 127x76.2x35 | 127x76.2x35 | |||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1, IEC60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 (CISPR22), EN61000-3-2,3 Compliance to EN55024, EN60601-1-2, EN61000-4-2,3,4,5,6,8,11 | |||||||||||||||
