Home / AC-DC Open Frame Type / EPP-500

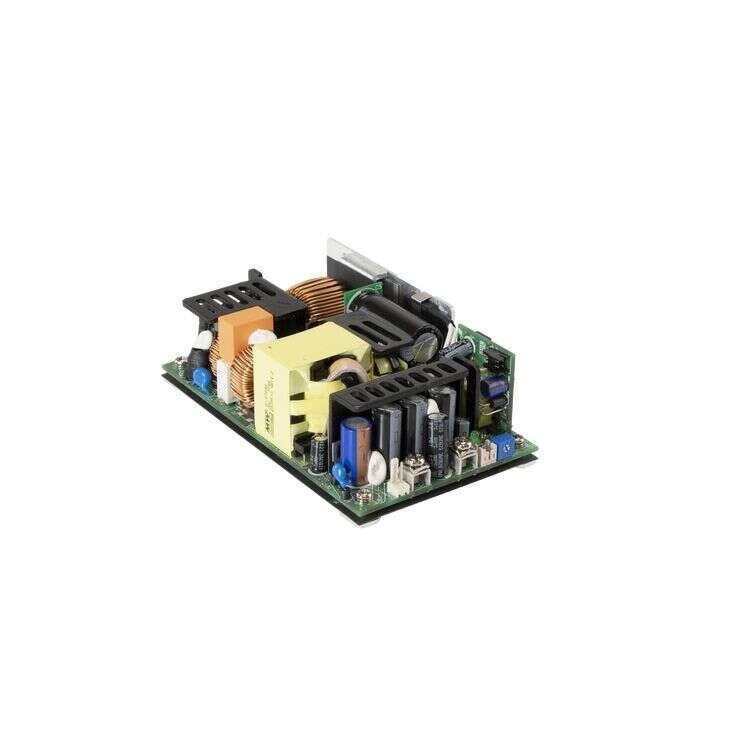

EPP-500 Series

Open Frame Power Supplies 500W

EPP-500

EPP-500 Series Main Features:

320W convection, 500W force air

EMI for both Class I & Class II configuration

5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense

Models:

Manufacturer:

Type:

Other features:

EPP-500-12 / EPP-500-15
EPP-500-18 / EPP-500-24
EPP-500-27 / EPP-500-36
EPP-500-48 / EPP-500-54

MEAN WELL

Open Frame Power Supplies

High efficiency up to 94%

Protections: Short circuit/ Overload/
Over voltage/Over temperature

Operating altitude up to 5000 meter

3 years warranty

Quote Request

    EPP-500-12EPP-500-15EPP-500-18EPP-500-24EPP-500-27EPP-500-36EPP-500-48EPP-500-54
    Wattage500500500500500500500500
    Input Voltage80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC80~264VAC 113~370VDC
    Output Current41.6A33.3A27.8A20.8A18.5A13.9A10.4A9.26A
    Output Voltage12V15V18V24V27V36V48V54V
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment11.4~12.6V14.3~15.8V17.1~18.9V22.8~25.2V25.6~28.4V34.2~37.8V45.6~50.4V51~56V
    Dimensions127x76.2x40127x76.2x40127x76.2x40127x76.2x40127x76.2x40127x76.2x40127x76.2x40127x76.2x40
    Working Temperature-30~+70°C
    Satety StandardsUL62368-1, TUV EN62368-1, IEC62368-1, EAC TP TC 004 approved
    EMC StandardsEN55032(CISPR32), CNS13438, EN61000-3-2 , EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11
