Home / AC-DC Open Frame Type / EPS-120

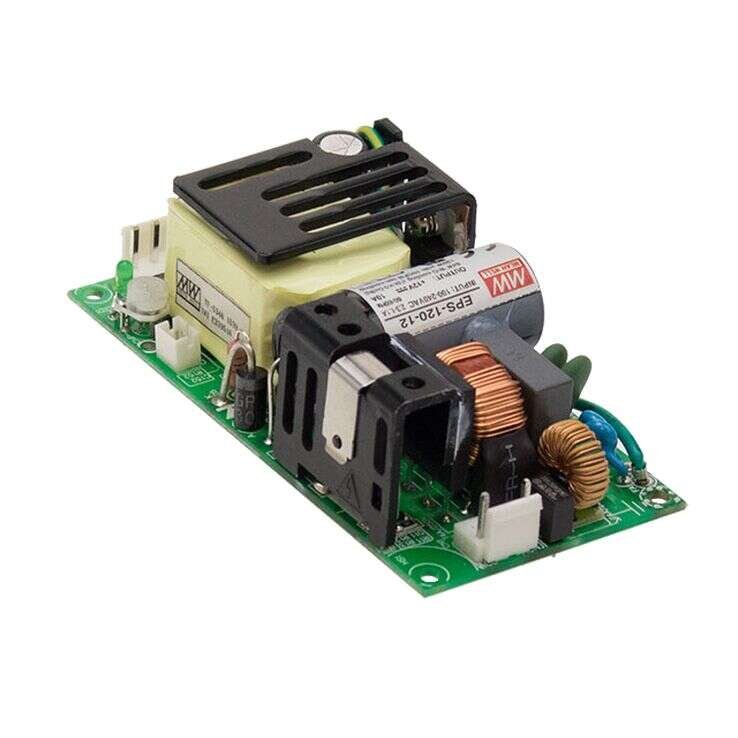

EPS-120 Series
Open Frame Power Supplies 120–121.5W
EPS-120 Series Main Features:
No load power consumption<0.3W
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
EPS-120-12 / EPS-120-15
EPS-120-24 / EPS-120-27
EPS-120-48
MEAN WELL
Open Frame Power Supplies
4"x2"x 0.95 compact size
High efficiency up to 91%
Universal AC input / Full range
Case available
Cooling by free air convection
LED indicator for power on
3 years warranty
Quote Request
| EPS-120-12 | EPS-120-15 | EPS-120-24 | EPS-120-27 | EPS-120-48 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 120 | 120 | 120 | 121.5 | 120 | |||||||||||
| Input Voltage | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | |||||||||||
| Output Current | 10A | 8A | 5A | 4.5A | 2.5A | |||||||||||
| Output Voltage | 12V | 15V | 24V | 27V | 48V | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| DC Output Adjustment | 11.4-12.6V | 14.3-15.8V | 22.8-25.2V | 25.6-28.4V | 45.6-50.4V | |||||||||||
| Dimensions | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | |||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1, IEC60950-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level(surge 2KV), criteria A | |||||||||||||||
