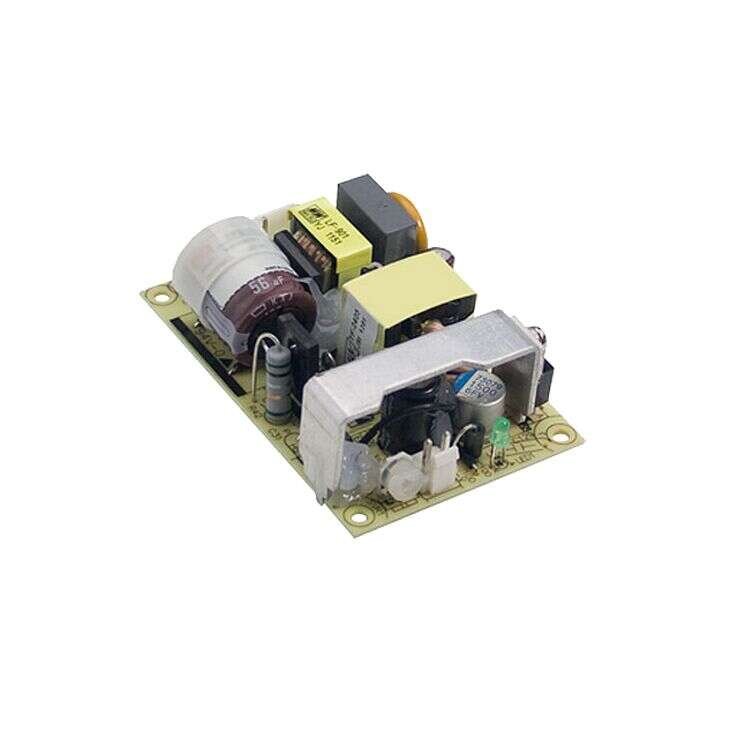

EPS-25 Series

Open Frame Power Supplies 16.5–25.5W

EPS-25

EPS-25 Series Main Features:

Universal AC input / Full range

No load power consumption<0.3W

Protections: Short circuit / Overload / Over voltage

Models:

Manufacturer:

Type:

Other features:

EPS-25-3.3 / EPS-15-5
EPS-15-7.5 / EPS-15-12
EPS-15-15 / EPS-15-24
EPS-15-27 / EPS-15-36
EPS-15-48

MEAN WELL

Open Frame Power Supplies

3" 2" compact size

Cooling by free air convection

LED indicator for power on

3 years warranty

Quote Request

    EPS-15-3.3EPS-25-5EPS-25-7.5EPS-25-12EPS-25-15EPS-25-24EPS-25-27EPS-25-36EPS-25-48
    Wattage16.52525.5252525252525
    Input Voltage85~264VAC 120~370VDC85~264VAC 120~370VDC85~264VAC 120~370VDC85~264VAC 120~370VDC85~264VAC 120~370VDC85~264VAC 120~370VDC85~264VAC 120~370VDC85~264VAC 120~370VDC85~264VAC 120~370VDC
    Output Current0~5.5A0~5.5A0~3.74A0~2.34A0~1.87A0~1.17A0~1.05A0~0.78A0~0.59A
    Output Voltage3.3V5V7.5V12V15V24V27V36V48V
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment3.1~3.6V4.75~5.5V7.13~8.25V10.8~13.5V13.5~16.5V21.6~27V24.3~29.7V32.4~39.6V43.2~52.8V
    Dimensions76.2x50.8x2476.2x50.8x2476.2x50.8x2476.2x50.8x2476.2x50.8x2476.2x50.8x2476.2x50.8x2476.2x50.8x2476.2x50.8x24
    Working Temperature-30~+70°C
    Satety StandardsUL60950-1, TUV EN60950-1 approved
    EMC StandardsCompliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level, criteria A
