Home / AC-DC Open Frame Type / EPS-45S

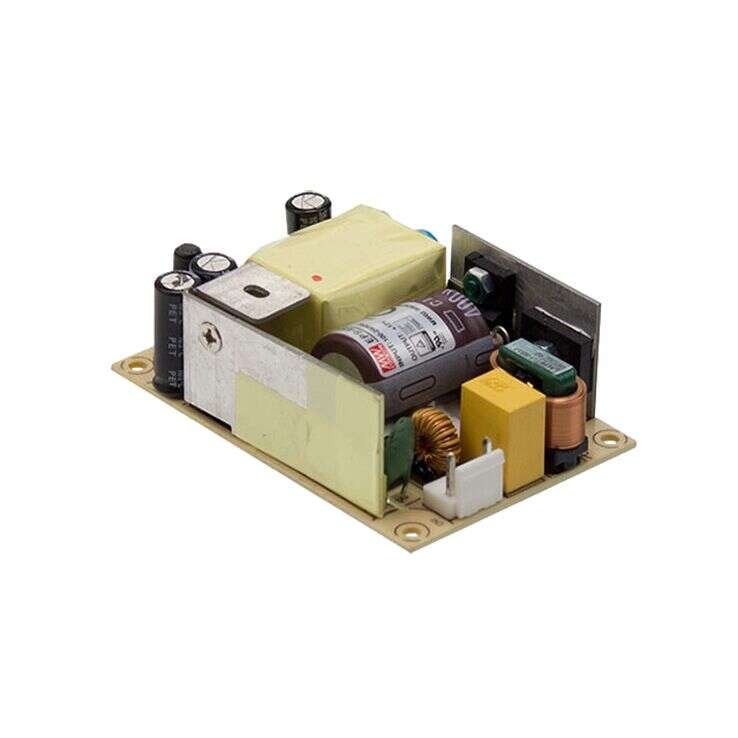

EPS-45S Series
Open Frame Power Supplies 26.4–45.6W
EPS-45S Series Main Features:
No load power consumption <0.1W
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
EPS-45S-3.3 / EPS-45S-5
EPS-45S-7.5 / EPS-45S-12
EPS-45S-15 / EPS-45S-24
EPS-45S-48
MEAN WELL
Open Frame Power Supplies
3"x2" miniature size
High efficiency up to 91%
Universal AC input / Full range
Class II (without FG) installations
For 1U applications
Operating altitude of up to 5000 meters
Cooling by free air convection
LED indicator for power on
3 years warranty
Quote Request
| EPS-45S-3.3 | EPS-45S-5 | EPS-45S-7.5 | EPS-45S-12 | EPS-45S-15 | EPS-45S-24 | EPS-45S-48 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 26.4 | 40 | 40.5 | 45.6 | 45 | 45.6 | 45.1 | |||||||||
| Input Voltage | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | |||||||||
| Output Current | 8A | 8A | 5.4A | 3.8A | 3A | 1.9A | 0.94A | |||||||||
| Output Voltage | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 48V | |||||||||
| DC Output Adjustment | 3.1~3.6V | 4.7~5.5V | 7.13~8.3V | 11.4~13.2V | 13.5~16.5V | 22.8~27.6V | 45.2~52.8V | |||||||||
| Dimensions | 76.2x50.8x24 | 76.2x50.8x24 | 76.2x50.8x24 | 76.2x50.8x24 | 76.2x50.8x24 | 76.2x50.8x24 | 76.2x50.8x24 | |||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL BS EN BS EN 62368-1, TUV /EN62368-1 / approved | |||||||||||||||
| EMC Standards | Compliance to /EN55032(CISPR32) Class B, /EN61000-3-2,3 BS EN BS EN , GB9254.1 Class B,GB17625 Class A, EAC TP TC 020 | |||||||||||||||
