Home / AC-DC Open Frame Type / EPS-65

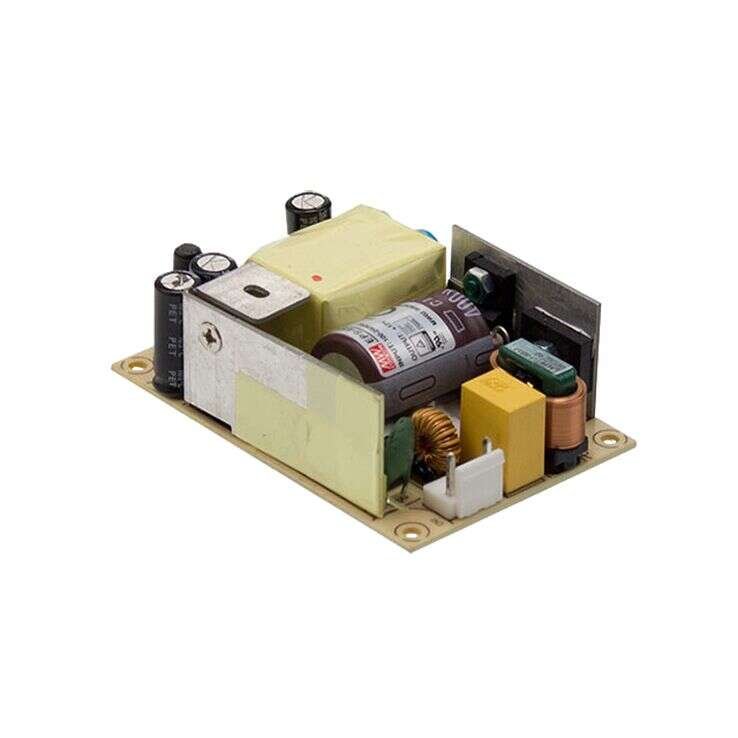

EPS-65 Series

Open Frame Power Supplies 65W

EPS-65

EPS-65 Series Main Features:

No load power consumption<0.3W

Protections: Short circuit / Overload / Over voltage

Models:

Manufacturer:

Type:

Other features:

EPS-65-3.3 / EPS-65-5
EPS-65-7.5 / EPS-65-12
EPS-65-15 / EPS-65-24
EPS-65-36 / EPS-65-48
EPS-65-3.3-C / EPS-65-5-C
EPS-65-7.5-C / EPS-65-12-C
EPS-65-15-C / EPS-65-24-C
EPS-65-36-C / EPS-65-48-C

MEAN WELL

Open Frame Power Supplies

4"x2"x 0.95 compact size

High efficiency up to 90%

Universal AC input / Full range

Case available

Cooling by free air convection

LED indicator for power on

3 years warranty

Quote Request

    EPS-65-3.3EPS-65-5EPS-65-7.5EPS-65-12EPS-65-15EPS-65-24EPS-65-36EPS-65-48EPS-65-3.3-CEPS-65-5-CEPS-65-7.5-CEPS-65-12-CEPS-65-15-CEPS-65-24-CEPS-65-36-CEPS-65-48-C
    Wattage65656565656565656565656565656565
    Input Voltage90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC
    Output Voltage3.3V5V7.5V12V15V24V36V48V3.3V5V7.5V12V15V24V36V48V
    Output Current0~11/12A0~11/12A0~8/8.8A0~5.4/6A0~4.3/4.8A0~2.72/3A0~1.81/2A0~1.36/1.5A0~11/12A0~11/12A0~8/8.8A0~5.4/6A0~4.3/4.8A0~2.72/3A0~1.81/2A0~1.36/1.5A
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingleSingleSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment3.1~3.6V4.75~5.5V7.13~8.25V10.8~13.5V13.5~16.5V21.6~27V32.4~39.6V43.2~52.8V3.1~3.6V4.75~5.5V7.13~8.25V10.8~13.5V13.5~16.5V21.6~27V32.4~39.6V43.2~52.8V
    Dimensions101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29
    Working Temperature-30~+70°C
    Satety StandardsUL62368-1, TUV /EN62368-1, approved
    EMC StandardsCompliance to /EN55032 (CISPR32) Class B, /EN61000-3-2,-3, BS EN BS EN GB9254.1 Class B,GB17625 Class A EAC TP TC 020
