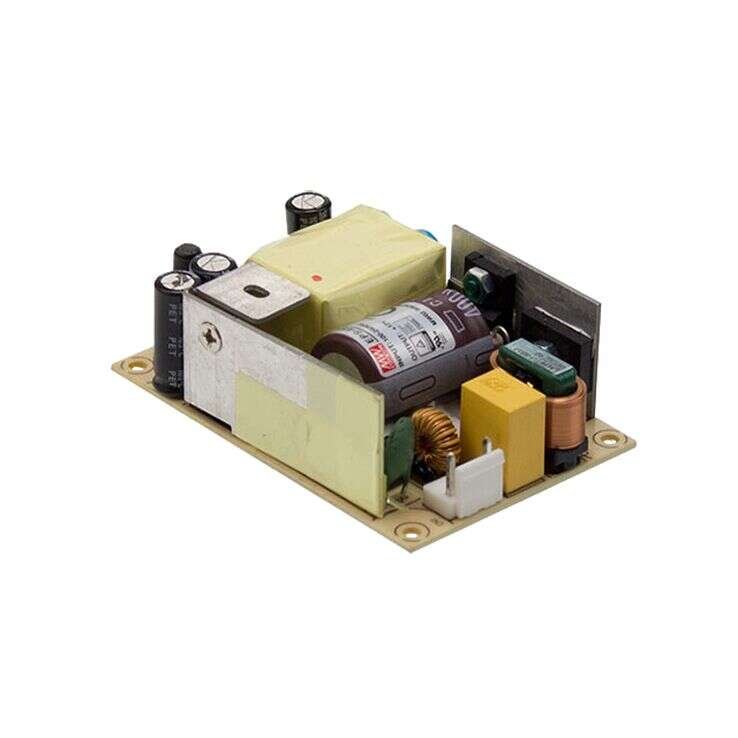

EPS-65S Series
Open Frame Power Supplies 33–65.3W
EPS-65S Series Main Features:
No load power consumption <0.1W
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
EPS-65S-3.3 / EPS-65S-5
EPS-65S-7.5 / EPS-65S-12
EPS-65S-15 / EPS-65S-24
EPS-65S-48
MEAN WELL
Open Frame Power Supplies
3"x2" compact size
High efficiency up to 91%
Universal AC input / Full range
Cooling by free air convection
LED indicator for power on
3 years warranty
Quote Request
| EPS-65S-3.3 | EPS-65S-5 | EPS-65S-7.5 | EPS-65S-12 | EPS-65S-15 | EPS-65S-24 | EPS-65S-48 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 33 | 50 | 60 | 65 | 65.1 | 65 | 65.3 | |||||||||
| Input Voltage | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | |||||||||
| Output Current | 10A | 10A | 8A | 5.42A | 4.34A | 2.71A | 1.36A | |||||||||
| Output Voltage | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 48V | |||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | |||||||||
| DC Output Adjustment | 2.9~3.6V | 4.7~5.5V | 7.13~8.3V | 11.4~13.2V | 13.5~16.5V | 22.8~27.6V | 45.6~52.8V | |||||||||
| Dimensions | 76.2x50.8x24 | 76.2x50.8x24 | 76.2x50.8x24 | 76.2x50.8x24 | 76.2x50.8x24 | 76.2x50.8x24 | 76.2x50.8x24 | |||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV EN62368-1, EN60335-1 EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to EN55032(CISPR32) Class B, EN61000-3-2-3, EAC TP TC 020 | |||||||||||||||
