Home / AC-DC Green Bidrectional Power / ERG-5000

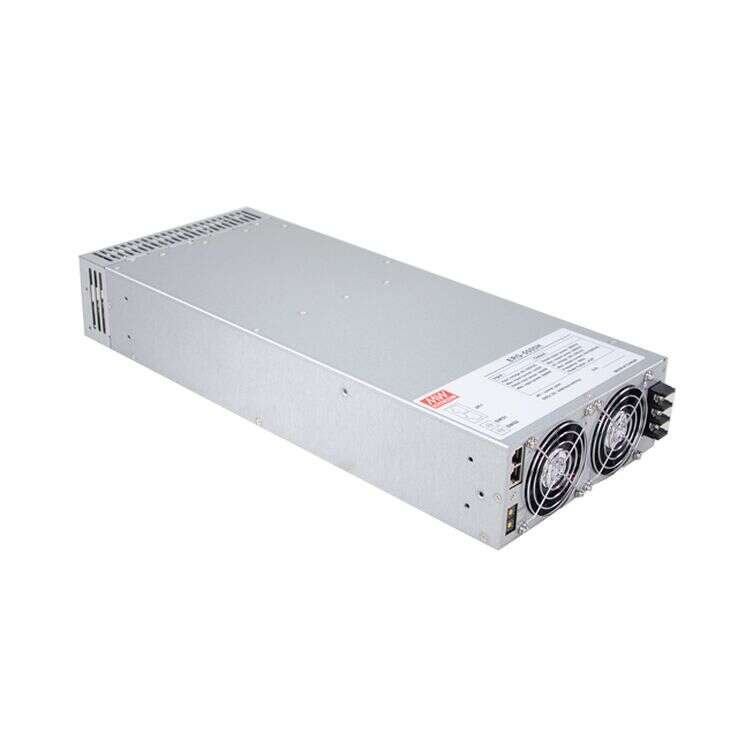

ERG-5000 Series
Inverters 5000W
ERG-5000 Series Main Features:
ERG-5000 series is an Grid Type energy recycling power inverter that supports 5KW rated and maximum up to 6KW input, it can achieve high efficiency up to 91%
Models:
Manufacturer:
Type:
Other features:
ERG-5000 / ERG-5000H
MEAN WELL
Green Bidrectional Power Inverter
Wide input voltage range 10~60VDC/60~
420VDC by models
High efficiency up to 91%
Modular design for flexible configuration
Flexible CC/CV operation modes
Remote control and monitoring by CAN
Bus protocol via CMU2A control console
Maximum 64 units ERG-5000 series that
can be connected
5 years warranty
Quote Request
| ERG-5000 | ERG-5000H | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 5000 | 5000 | ||||||||||||||
| Input Voltage | 10~60VDC | 60~420VDC | ||||||||||||||
| Output Current | 24A/230VAC | 24A/230VAC | ||||||||||||||
| Output Voltage | 180~264±5VAC, single phase | 4500 ~ 4600VA (For input 60 ~ 420VDC) | ||||||||||||||
| Dimensions | 504x211x83.5 | 504x211x83.5 | ||||||||||||||
| Working Temperature | -20~+60℃ | |||||||||||||||
| Satety Standards | BS EN/EN62368-1 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Class A | |||||||||||||||
