Home / AC-DC Enclosed Type / ERP-200

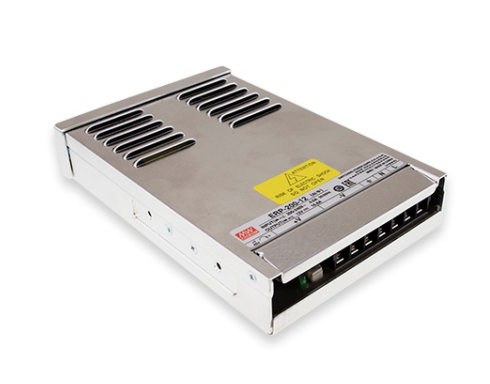

ERP-200 Series
200W Single Output Switching Power Supply
ERP-200 Series Main Features:
Cooling by free air convection
Low cost, high reliability
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
ERP-200-12 / ERP-200-24
MEAN WELL
Enclosed Power Supplies
Withstand 300VAC surge input for 5 seconds
AC input 180~264VAC
Design against rain splash
100% full load burn-in test
LED Indicator for power on
3 years warranty
Quote Request
| ERP-200-12 | ERP-200-24 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 200.4 | 199.92 | ||||||||||||||
| Input Voltage | 180-264VAC 254-370VDC | 180-264VAC 254-370VDC | ||||||||||||||
| Output Current | 16.8A | 8.33A | ||||||||||||||
| Output Voltage | 12 | 24 | ||||||||||||||
| Output Voltage Option | Single | Single | ||||||||||||||
| DC Output Adjustment | 10.8-13.2V | 21.6-26.4V | ||||||||||||||
| Dimensions | 200*120*40 | 200*120*40 | ||||||||||||||
| Working Temperature | -30-+60°C | |||||||||||||||
| Satety Standards | IEC/BS EN/EN 62368-1,GB 4943.1,EAC TP TC 004,IS13252(Part1) approved | |||||||||||||||
| EMC Standards | Refer to BS EN/EN55022 (CISPR22) class A, EAC TP TC 020 | |||||||||||||||
