Home / AC-DC Enclosed Type / ERP-350

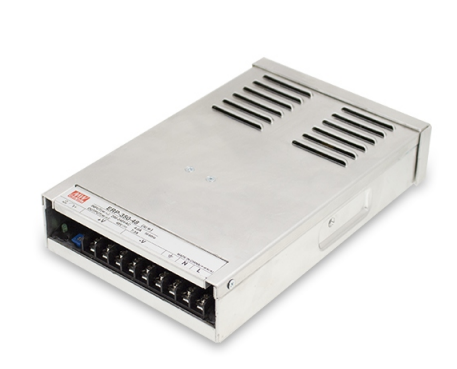

ERP-350 Series
350W Single Output Switching Power Supply
ERP-350 Series Main Features:
Cooling by free air convection
Low cost, high reliability
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
ERP-350-12 / ERP-350-24
ERP-350-36 / ERP-350-48
MEAN WELL
Enclosed Power Supplies
Withstand 300VAC surge input for 5 seconds
AC input 180~264VAC
Design against rain splash
100% full load burn-in test
LED Indicator for power on
3 years warranty
Quote Request
| ERP-350-12 | ERP-350-24 | ERP-350-36 | ERP-350-48 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 320.4 | 350.4 | 349.2 | 350.4 | ||||||||||||
| Input Voltage | 180-264VAC 254-370VDC | 180-264VAC 254-370VDC | 180-264VAC 254-370VDC | 180-264VAC 254-370VDC | ||||||||||||
| Output Current | 0~26.7A | 0~14.6A | 0~9.7A | 0~7.3A | ||||||||||||
| Output Voltage | 12 | 24 | 36 | 48 | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 10.8-13.2V | 21.6-26.4V | 32.4-39.6V | 43.2-52.8V | ||||||||||||
| Dimensions | 220.4*130*48 | 220.4*130*48 | 220.4*130*48 | 220.4*130*48 | ||||||||||||
| Working Temperature | -30-+60°C | |||||||||||||||
| Satety Standards | UL 62368-1,IEC 62368-1,GB 4943.1,EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Refer to EN55022 (CISPR22) class A, EAC TP TC 020 | |||||||||||||||
