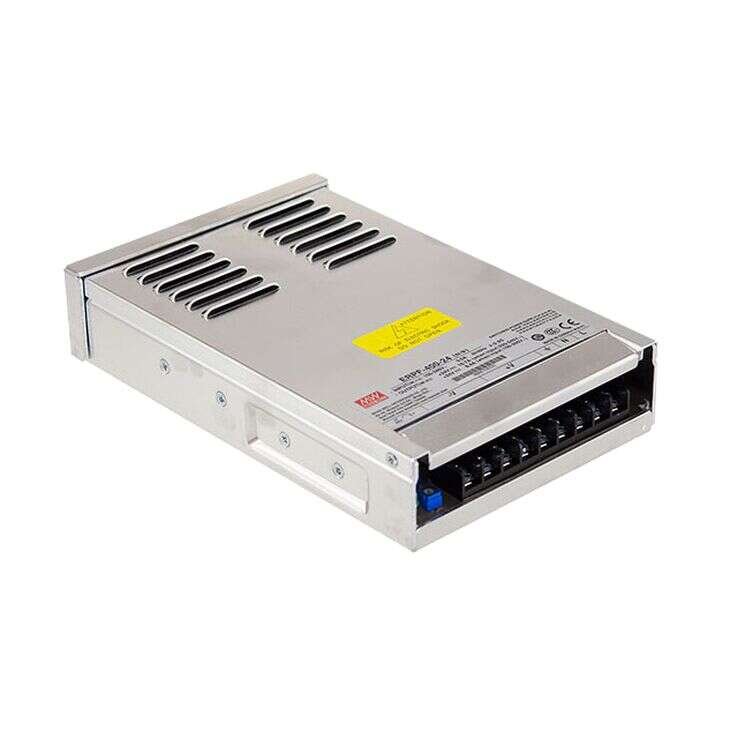

ERPF-400 Series
Enclosed Power Supplies 360–400.8W
ERPF-400 Series Main Features:
Design against rain splash
Built-in active PFC function
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
ERPF-400-12 / ERPF-400-24
ERPF-400-48
MEAN WELL
Enclosed Power Supplies
Universal AC input / Full range
Cooling by free air convection
High efficiency up to 91%
LED indicator for power on
Low cost, high reliability
LED Indicator for power on
3 years warranty
Quote Request
| ERPF-400-12 | ERPF-400-24 | ERPF-400-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 360 | 400.8 | 398.4 | |||||||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | |||||||||||||
| Output Current | 0-30A | 0-16.7A | 0-8.33A | |||||||||||||
| Output Voltage | 12 | 24 | 48 | |||||||||||||
| Output Voltage Option | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 10.8-13.2V | 21.6-26.4V | 43.2-52.8V | |||||||||||||
| Dimensions | 220.4x 130x 48 | 220.4x 130x 48 | 220.4x 130x 48 | |||||||||||||
| Working Temperature | -30~+60°C | |||||||||||||||
| Satety Standards | GB4943.1-2011 | |||||||||||||||
| EMC Standards | EN55022 (CISPR22) class A, GB9254 class A, GB17625.1;EN61000-3-2, EN61000-4-5; light industry level, criteria A | |||||||||||||||
