Home / AC-DC DIN Rail Type / HDR-100

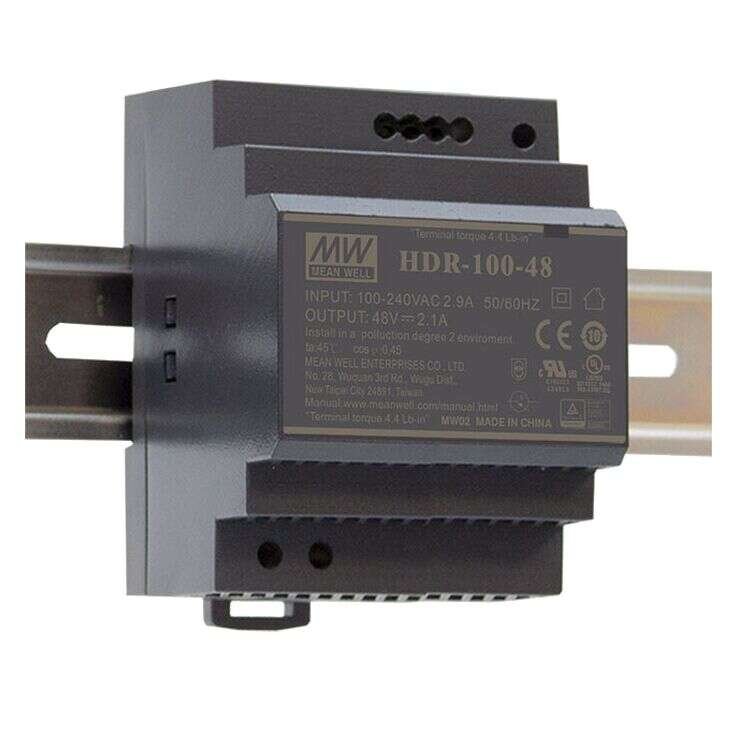

HDR-100 Series
DIN Rail Power Supplies 85.2–100.8W
HDR-30 Series Main Features:
Ultra slim design with 70mm (4SU) width
DC output voltage adjustable
No load power consumption <0.3W
Protections: Short circuit / Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
HDR-100-12 / HDR-100-12N
HDR-100-15 / HDR-100-15N
HDR-100-24 / HDR-100-24N
HDR-100-48 / HDR-100-48N
MEAN WELL
Enclosed Power Supplies
Universal input 85-264VAC (277VAC available)
Isolation class II
Pass LPS (Limited power source) for blank type
Cooling by free air convection
(working temperature : -30~+70°C)
Din rail TS-35/7.5 or 15 mountable
LED Indicator for power on
3 years warranty
Quote Request
| HDR-100-12 | HDR-100-12N | HDR-100-15 | HDR-100-15N | HDR-100-24 | HDR-100-24N | HDR-100-48 | HDR-100-48N | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 85.2 | 90 | 92 | 97.5 | 92 | 100.8 | 92.2 | 100.8 | ||||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | ||||||||
| Output Current | 7.1A | 7.5A | 6.13A | 6.5A | 3.83A | 4.2A | 1.92A | 2.1A | ||||||||
| Output Voltage | 12 | 12 | 15 | 15 | 24 | 24 | 48 | 48 | ||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| DC Output Adjustment | 12-13V | 12-13.8V | 15-17V | 13.5-18V | 24-25.5V | 21.6-29V | 48-48.7V | 43.2-55.2V | ||||||||
| Dimensions | 70x90x54.5 | 70x90x54.5 | 70x90x54.5 | 70x90x54.5 | 70x90x54.5 | 70x90x54.5 | 70x90x54.5 | 70x90x54.5 | ||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178, TUV EN60950-1 | |||||||||||||||
| EMC Standards | Compliance to EN55032 (CISPR32) Class B, EN61000-3-2-3 Class A, EN55024, EN61000-6-2, EN61204-3, EN61000-4-2,3,4,5,6,8,11 | |||||||||||||||
