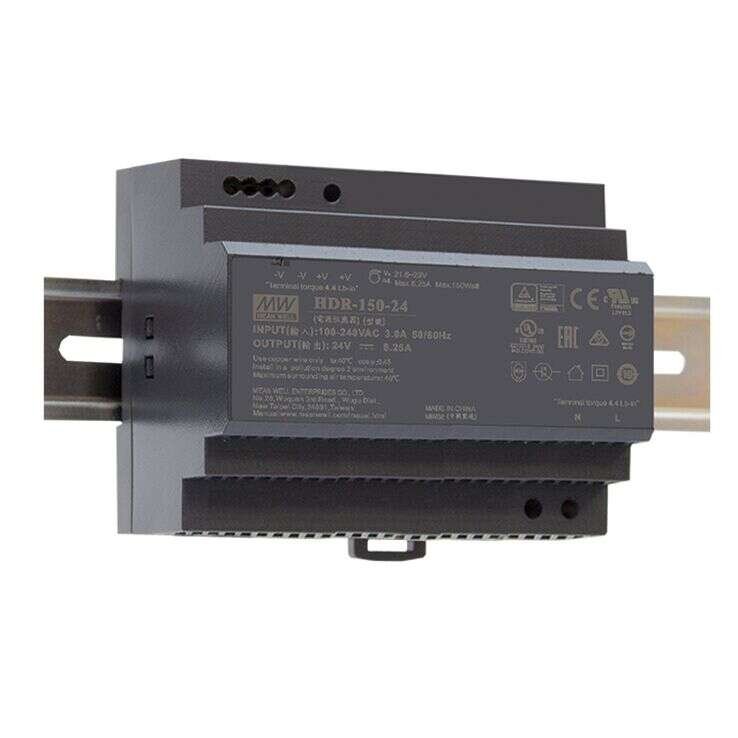

HDR-150 Series
DIN Rail Power Supplies 150W
HDR-150 Series Main Features:
Ultra slim design with 105mm 6SU width
63mm slim profile (width)Universal input 85-264VAC (277VAC operational)
Models:
Manufacturer:
Type:
Other features:
HDR-150-12 / HDR-150-15
HDR-150-24 / HDR-150-48
MEAN WELL
DIN Rail Power Supplies
DC output voltage adjustable
Isolation class II
DIN rail TS-35/7.5 or 15 mountable
Over voltage category III
3 years warranty
Quote Request
| HDR-150-12 | HDR-150-15 | HDR-150-24 | HDR-150-48 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 150 | 150 | 150 | 150 | ||||||||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | ||||||||||||
| Output Current | 10.2A-115VAC 11.3A-230VAC | 8.55A-115VAC 9.5A-230VAC | 5.31A-115VAC 6.25A-230VAC | 2.72A-115VAC 3.2A-230VAC | ||||||||||||
| Output Voltage | 12 | 15 | 24 | 48 | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 10.8-13.8V | 13.5-18V | 21.6-29V | 43.2-55.2V | ||||||||||||
| Dimensions | 105x90x54.5 | 105x90x54.5 | 105x90x54.5 | 105x90x54.5 | ||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | IEC62368-1, UL62368-1, UL61010, TUV EN61558-2-16, EAC TP TC 004 approved; Design refer to EN50178,TUV EN62368-1 | |||||||||||||||
| EMC Standards | EN55032(CISPR32)/EN61204-3, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 | |||||||||||||||
