Home / AC-DC Security&Specific Type / HEP-100

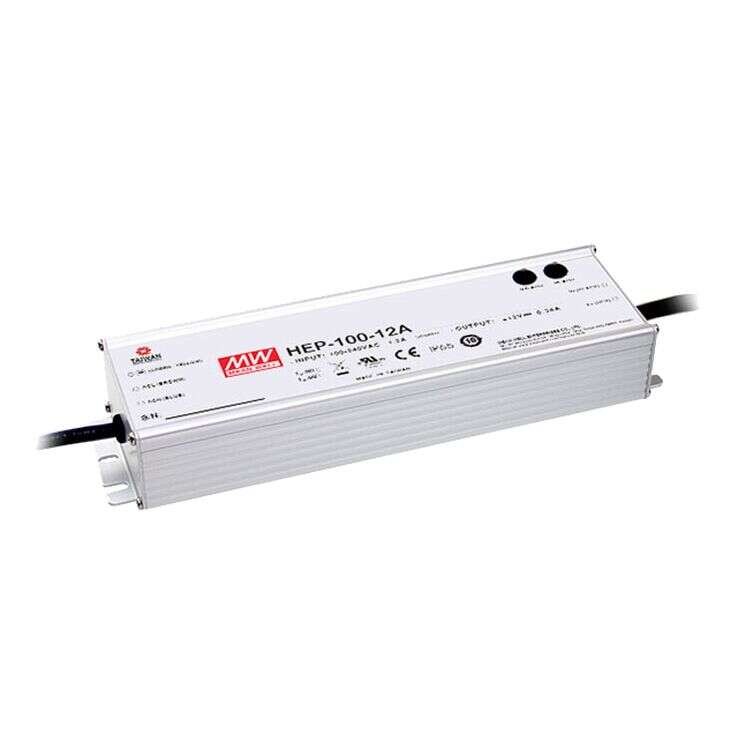

HEP-100 Series
Enclosed Power Supplies 95.4–100.08W
HEP-100 Series Main Features:
Fanless design, cooling by free air convection
Protections: Short circuit / Over current / Over voltage/Over temperature
Models:
Manufacturer:
Type:
Other features:
HEP-100-12 /
HEP-100-15
HEP-100-24 /
HEP-100-36
HEP-100-48 /
HEP-100-54
MEAN WELL
Enclosed Power Supplies
Universal AC input (up to 305VAC) / Full range
Built-in active PFC function
High efficiency up to 93%
Withstand 10G vibration test
-55~+70°C wide operating range
Aluminium case and filling with
heat-conducted silicone
IP65 design, optional IP68 rated
model available
Meet 6KV surge immunity level
Quote Request
| HEP-100-12 | HEP-100-15 | HEP-100-24 | HEP-100-36 | HEP-100-48 | HEP-100-54 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 100.08 | 100.05 | 96 | 95.4 | 96 | 95.58 | ||||||||||
| Input Voltage | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC | ||||||||||
| Output Current | 8.34A | 6.67A | 4A | 2.65A | 2A | 1.77A | ||||||||||
| Output Voltage | 12 | 15 | 24 | 36 | 48 | 54 | ||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | ||||||||||
| DC Output Adjustment | 10.8-13.5V | 13.5-17V | 22-27V | 33-40V | 43-53V | 49-58V | ||||||||||
| Dimensions | 220x68x38.8 | 220x68x38.8 | 220x68x38.8 | 220x68x38.8 | 220x68x38.8 | 220x68x38.8 | ||||||||||
| Working Temperature | -55~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, IP65 (or IP68 for HEP-100 Black type) approved ; design refer to TUV EN60950-1 | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level (surge 6KV), criteria A | |||||||||||||||
