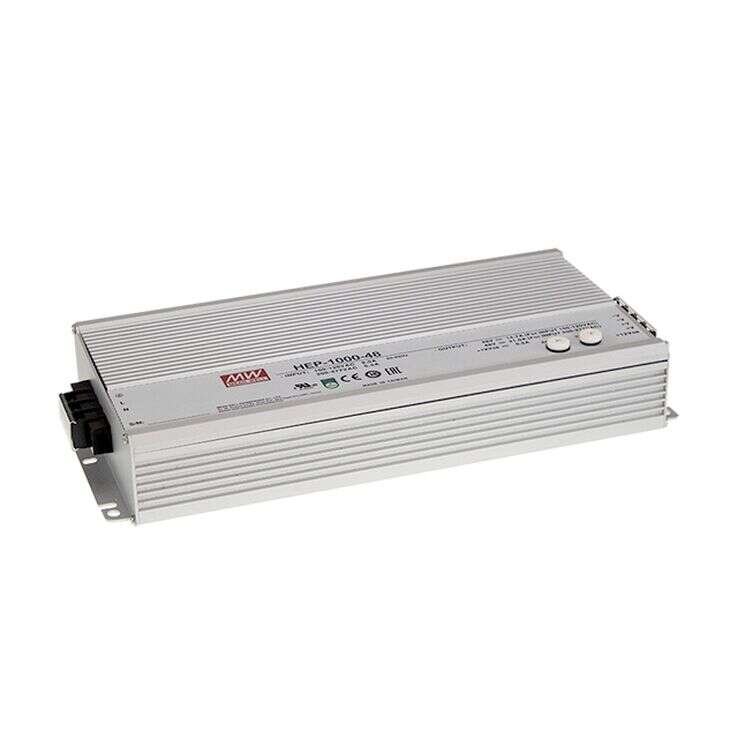

HEP-1000 Series
Enclosed Power Supplies 1000W
HEP-1000 Series Main Features:
Built-in active PFC function
High efficiency up to 96%
Models:
Manufacturer:
Type:
Other features:
HEP-1000-24 / HEP-1000-48
HEP-1000-100 / HEP-1000-24W
HEP-1000-48W / HEP-1000-100W
MEAN WELL
Security&Specific Power Supplies
Fanless design, cooling by free
air convection
Withstand 10G vibration test
Output voltage and constant current
level programmable
Optional wiring type with IP67 rating
Charger for lead-acid batteries (flooded,
Gel and AGM) and Li-ion batteries (lithi
-um iron and lithium manganese)
6 years warranty
Quote Request
| HEP-1000-24 | HEP-1000-48 | HEP-1000-100 | HEP-1000-24W | HEP-1000-48W | HEP-1000-100W | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | ||||||||||
| Input Voltage | 90-305VAC 250-431VDC | 90-305VAC 250-431VDC | 90-305VAC 250-431VDC | 90-305VAC 250-431VDC | 90-305VAC 250-431VDC | 90-305VAC 250-431VDC | ||||||||||
| Output Current | 42A | 21A | 10A | 42A | 21A | 10A | ||||||||||
| Output Voltage | 24V | 48V | 100V | 24V | 48V | 100V | ||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | ||||||||||
| Dimensions | 310x144x48.5 | 310x144x48.5 | 310x144x48.5 | 310x144x48.5 | 310x144x48.5 | 310x144x48.5 | ||||||||||
| Working Temperature | -40-+70°C | |||||||||||||||
| Satety Standards | UL62368-1,TUV EN62368-1, EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1(by request) | |||||||||||||||
| EMC Standards | EN55032 (CISPR32), EN61000-3-2, EN61000-4-2,3,4,5,6,8,11 | |||||||||||||||
