Home / AC-DC Security&Specific Type / HEP-185

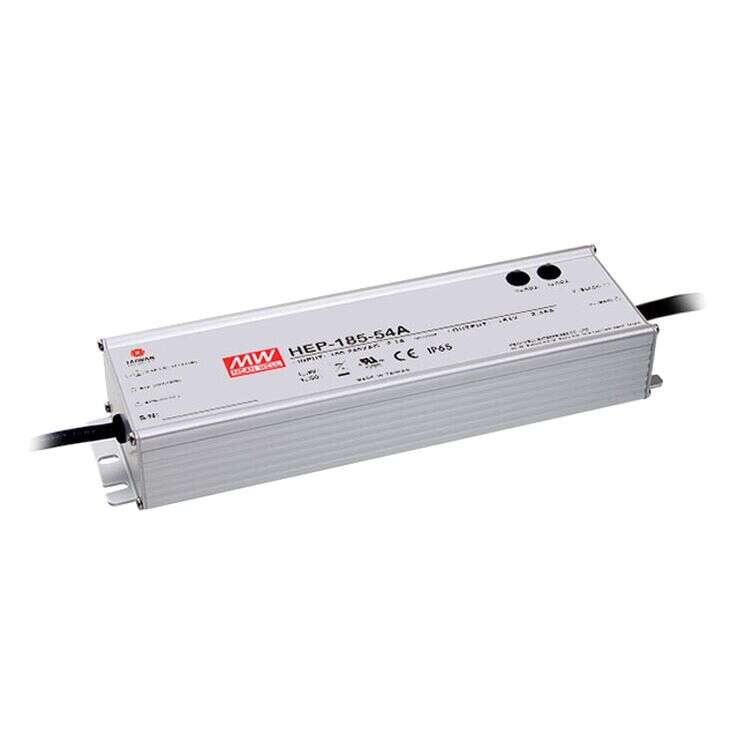

HEP-185 Series
Enclosed Power Supplies 156–187.2W
HEP-185 Series Main Features:
Withstand 10G vibration test
Fanless design, cooling by free air convection
Protections: Short circuit / Over current / Over voltage/Over temperature
Models:
Manufacturer:
Type:
Other features:
HEP-185-12 / HEP-185-15
HEP-185-24 / HEP-185-36
HEP-185-48 / HEP-185-54
MEAN WELL
Security&Specific Power Supplies
Universal AC input (up to 305VAC) / Full range
Built-in active PFC function
High efficiency up to 93%
-55~+70°C wide operating range
Aluminium case and filling with
heat-conducted silicone
IP65 design, optional IP68 rated
model available
Meet 6KV surge immunity level
6 years warranty
Quote Request
| HEP-185-12 | HEP-185-15 | HEP-185-24 | HEP-185-36 | HEP-185-48 | HEP-185-54 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 156 | 172 | 187.2 | 187.2 | 187.2 | 187.2 | ||||||||||
| Input Voltage | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC | 90-305VAC | ||||||||||
| Output Current | 12.5A | 10A | 6.3A | 4.2A | 3.2A | 2.8A | ||||||||||
| Output Voltage | 12V | 15V | 24V | 36V | 48V | 54V | ||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | ||||||||||
| DC Output Adjustment | 10.8-13.5V | 13.5-17V | 22-27V | 33-40V | 43-53V | 49-58V | ||||||||||
| Dimensions | 228x68x38.8 | 228x68x38.8 | 228x68x38.8 | 228x68x38.8 | 228x68x38.8 | 228x68x38.8 | ||||||||||
| Working Temperature | -55~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, IP65 (or IP68 for HEP-185 Black type) approved ; design refer to TUV EN60950-1 | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level (surge 6KV), criteria A | |||||||||||||||
