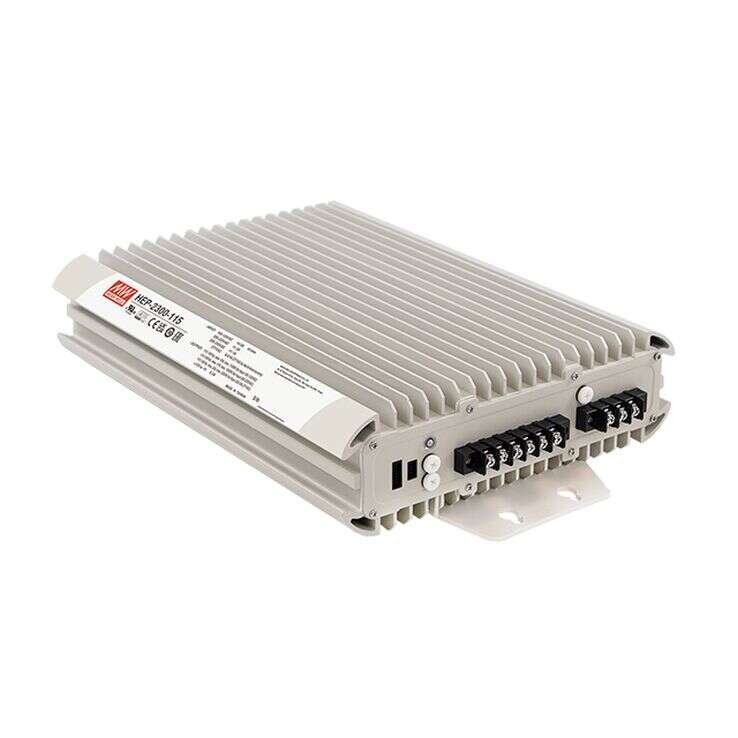

HEP-2300 Series
Enclosed Power Supplies 2300W
HEP-2300 Series Main Features:
HEP-2300 is a 2300W industrial AC/DC power supply featuring the outstanding capability to operate under highly humid, dusty, oily, and high-vibration harsh environment
Models:
Manufacturer:
Type:
Other features:
HEP-2300-55
MEAN WELL
Security&Specific Power Supplies
Fanless design, cooling by free
air convection
High efficiency up to 95.5% and active
PFC function
Withstand 10G vibration test
-40~70°C wide operating range
Built-in default 2/3 stage charging curves
and programmable curve
LED indicator for power on
Diverse installation scenarios-Mounting methods
6 years warranty
Quote Request
| HEP-2300-55 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 2300W | |||||||||||||||
| Output Current | 41.8A | |||||||||||||||
| Output Voltage | 55V | |||||||||||||||
| Dimensions | 375x280x88 | |||||||||||||||
| Working Temperature | -40~70°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved: design refers to BSEN/EN61558-1, BS EN/EN60335-1 (by requies) | |||||||||||||||
| EMC Standards | BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-6-2, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11 | |||||||||||||||
