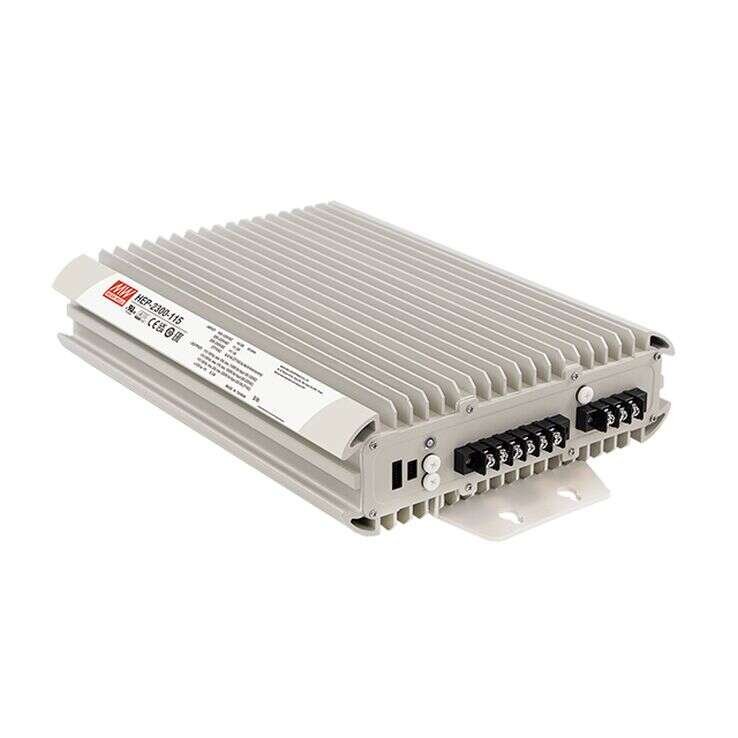

HEP-2300-HV Series
Enclosed Power Supplies 2300W
HEP-2300-HV Series Main Features:
HEP-2300 IS A 2300w industrial AC/DC power supply featuring the outstanding capability tp operate under highly humid, dusty, oily and high-vibration harsh environment
Models:
Manufacturer:
Type:
Other features:
HEP-2300-115 / HEP-2300-230
HEP-2300-380
MEAN WELL
Security&Specific Power Supplies
High efficiency up yo 95.5% and active
PFC function
Fanless design, cooling by free air convection
Withstand 10G vibration
-40~70°C wide operating temperature
Aluminium case and filling with
heat-conducted silicone
LED indicator for power on
Wiring type with IP67 rating
6 years warranty
Quote Request
| HEP-2300-115 | HEP-2300-230 | HEP-2300-380 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 2300 | 2300 | 2300 | |||||||||||||
| Input Voltage | 90-305VAC | 90-305VAC | 90-305VAC | |||||||||||||
| Output Current | 20A | 10A | 6.9A | |||||||||||||
| Output Voltage | 115V | 230V | 380V | |||||||||||||
| Dimensions | 375x280x88 | 375x280x88 | 375x280x88 | |||||||||||||
| Working Temperature | -40~70°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved; design refers to BS EN/EN61558-1, BS EN/EN60335-1(by request) | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-3-2, BS EN/EN61000-3-3 | |||||||||||||||
