Home / AC-DC Security&Specific Type / HEP-240

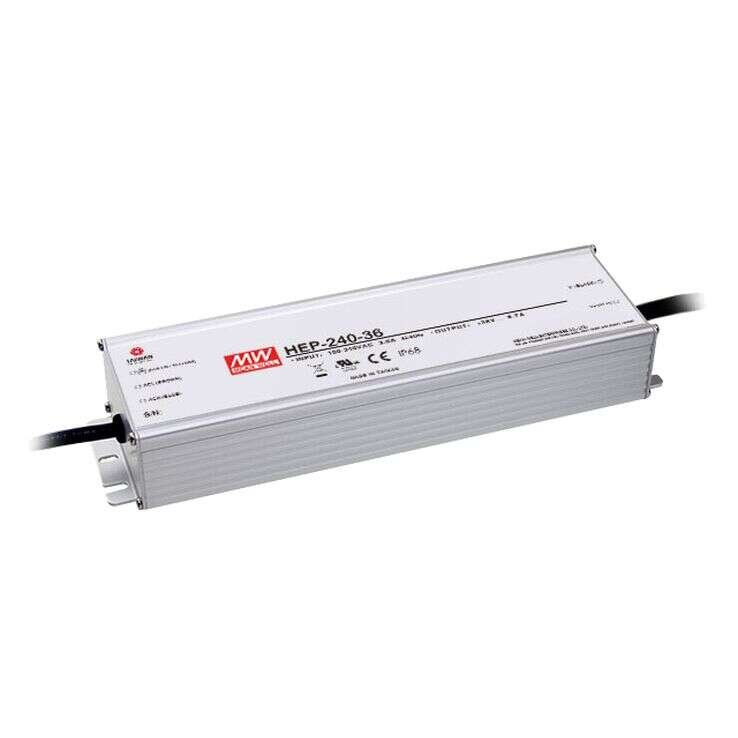

HEP-240 Series
Enclosed Power Supplies 192–241.2W
HEP-240 Series Main Features:
HEP-240 is a 240W industrial AC/DC power supply featuring the outstanding capability to operate under a harsh environment with high dust density, humidity, vibration and altitude.
Models:
Manufacturer:
Type:
Other features:
HEP-240-12 / HEP-240-15
HEP-240-24 / HEP-240-36
HEP-240-48 / HEP-240-54
MEAN WELL
Security&Specific Power Supplies
Universal AC input (up to 305VAC) / Full range
Fanless design, cooling by free air convection
Built-in active PFC function
High efficiency up to 93.5%
-55~+70°C wide operating range
Aluminium case and filling with
heat-conducted silicone
IP65 design, optional IP68 rated
model available
Meet 6KV surge immunity level
6 years warranty
Quote Request
| HEP-240-12 | HEP-240-15 | HEP-240-24 | HEP-240-36 | HEP-240-48 | HEP-240-54 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 192 | 225 | 240 | 241.2 | 240 | 240.3 | ||||||||||
| Input Voltage | 85~264VAC | 85-305VAC | 85-305VAC | 85-305VAC | 85-305VAC | 85-305VAC | ||||||||||
| Output Current | 16A | 15A | 10A | 6.7A | 5A | 4.45A | ||||||||||
| Output Voltage | 12V | 15V | 24V | 36V | 48V | 54V | ||||||||||
| Dimensions | 244.2x68x38.8 | 244.2x68x38.8 | 244.2x68x38.8 | 244.2x68x38.8 | 244.2x68x38.8 | 244.2x68x38.8 | ||||||||||
| Working Temperature | -55~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, IEC/EN62368-1, IP65 (or IP68 for HEP-240 Blank-Type), EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to EN55032 (CISPR32) Class B, EN61000-3-2, -3, EAC TP TC 020 | |||||||||||||||
