HEP-320 Series

Enclosed Power Supplies 264–321W

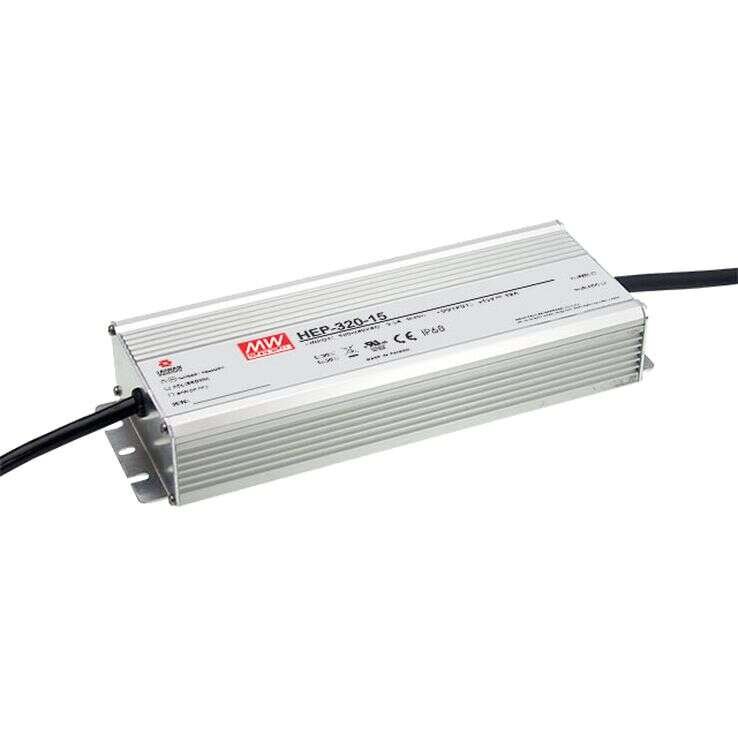

HEP-320

HEP-320 Series Main Features:

Withstand 10G vibration test

Fanless design, cooling by free air convection

Protections: Short circuit / Over current / Over voltage

Models:

Manufacturer:

Type:

Other features:

HEP-320-12 / HEP-320-15
HEP-320-24 / HEP-320-36
HEP-320-48 / HEP-320-54

MEAN WELL

Security&Specific Power Supplies

Universal AC input (up to 305VAC) / Full range

Built-in active PFC function

High efficiency up to 95%

-55~+70°C wide operating range

Aluminium case and filling with
heat-conducted silicone

IP65 design, optional IP68 rated
model available

Meet 6KV surge immunity level

6 years warranty

Quote Request

    HEP-320-12HEP-320-15HEP-320-24HEP-320-36HEP-320-48HEP-320-54
    Wattage264285320320321321
    Input Voltage90~305VAC, 127~431VDC90~305VAC, 127~431VDC90~305VAC, 127~431VDC90~305VAC, 127~431VDC90~305VAC, 127~431VDC90~305VAC, 127~431VDC
    Output Current22A19A13.34A8.9A6.7A5.95A
    Output Voltage12V15V24V36V48V54V
    Output Voltage OptionSingleSingleSingleSingleSingleSingle
    DC Output Adjustment10.8-13.5V13.5-17V21-26V32-39V43-52V49-58V
    Dimensions252x90x43.8252x90x43.8252x90x43.8252x90x43.8252x90x43.8252x90x43.8
    Working Temperature-55~+70°C
    Satety StandardsUL60950-1, IP65 (or IP68 for HEP-320 Blank-Type) approved ; design refer to TUV EN60950-1
    EMC StandardsCompliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level (surge 6KV), criteria A
