Home / AC-DC Security&Specific Type / HEP-480

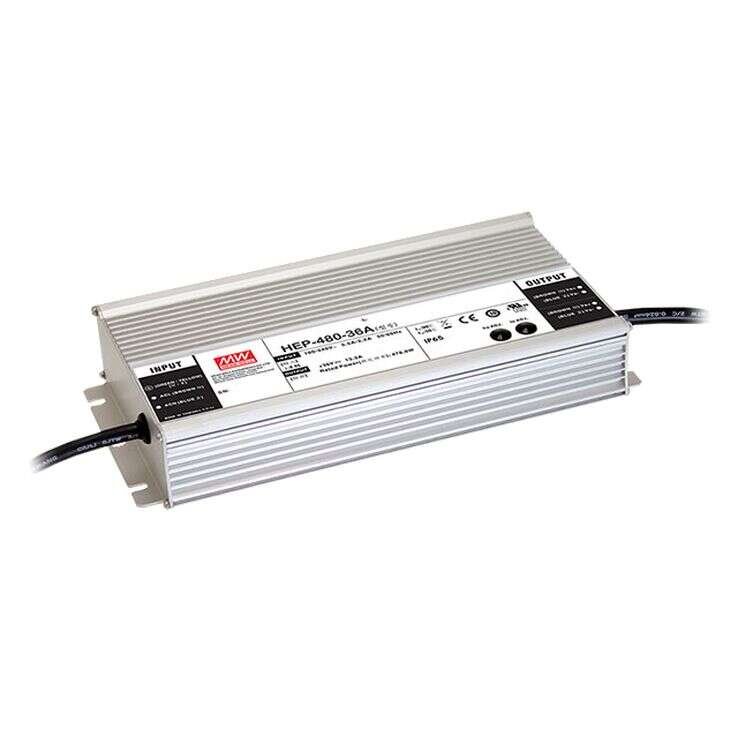

HEP-480 Series
Enclosed Power Supplies 478.8–480.6W
HEP-480 Series Main Features:
Withstand 10G vibration test
Fanless design, cooling by free air convection
Protections: Short circuit / Over current / Over voltage/Over temperature
Models:
Manufacturer:
Type:
Other features:
HEP-480-24 / HEP-480-36
HEP-480-48 / HEP-480-54
MEAN WELL
Security&Specific Power Supplies
Universal AC input (up to 305VAC) / Full range
Built-in active PFC function
High efficiency up to 95%
-55~+65°C wide operating range
Aluminium case and filling with
heat-conducted silicone
IP65 design, optional IP68 rated
model available
Meet 6KV surge immunity level
6 years warranty
Quote Request
| HEP-480-24 | HEP-480-36 | HEP-480-48 | HEP-480-54 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 480 | 478.8 | 480 | 480.6 | ||||||||||||
| Input Voltage | 90-305VAC 127-431VDC | 90-305VAC 127-431VDC | 90-305VAC 127-431VDC | 90-305VAC 127-431VDC | ||||||||||||
| Output Current | 20A | 13.3A | 10A | 8.9A | ||||||||||||
| Output Voltage | 24V | 36V | 48V | 54V | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 20.4-25.2V | 30.6-37.8V | 40.8-50.4V | 45.9-56.7V | ||||||||||||
| Dimensions | 262x125x43.8 | 262x125x43.8 | 262x125x43.8 | 262x125x43.8 | ||||||||||||
| Working Temperature | -55~+65°C | |||||||||||||||
| Satety Standards | UL60950-1, IP65 (or IP68 for HEP-240 Black type) approved ; design refer to TUV EN60950-1 | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level (surge 6KV), criteria A | |||||||||||||||
