Home / AC-DC Enclosed Type / HRP-100

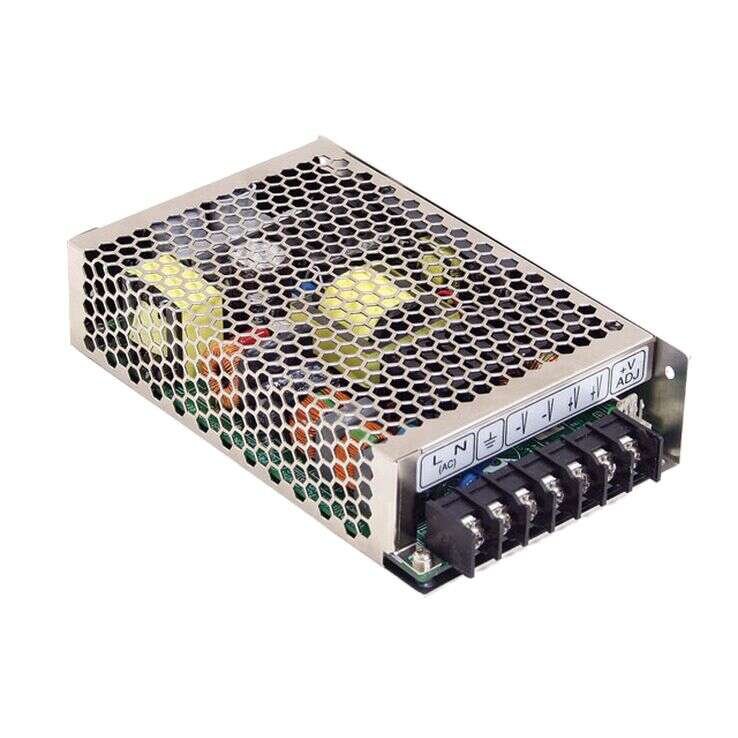

HRP-100 Series

Enclosed Power Supplies 66–108W

HRP-100

HRP-100 Series Main Features:

No Load power consumption <0.5W

Protections: Short circuit / Overload/ Over voltage/ Over Temperature

Models:

Manufacturer:

Type:

Other features:

HRP-100-3.3 / HRP-100-5
HRP-100-7.5 / HRP-100-12
HRP-100-15 / HRP-100-24
HRP-100-36 / HRP-100-48

MEAN WELL

Enclosed Power Supplies

Universal AC input / Full range

Withstand 300VAC surge input for 5 seconds

Built-in constant current limiting circuit

Built-in active PFC function

Built in remote ON/OFF control

Cooling by free air

1U low profile

LED Indicator for power on

100% full load burn-in test

5 years warranty

Quote Request

    HRP-100-3.3HRP-100-5HRP-100-7.5HRP-100-12HRP-100-15HRP-100-24HRP-100-36HRP-100-48
    Wattage6685101102105108104106
    Input Voltage85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC
    Output Current0~20A0~17A0~13.5A0~8.5A0~7A0~4.5A0~2.9A0~2.2A
    Output Voltage3.3V5V7.5V12V15V24V36V48V
    Output Voltage OptionSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment3.1~3.8V4.75~5.8V7.1~9V11.4~13.8V14.25~18V22.8~28.8V34.2~39.6V45.6~55.2V
    Dimensions159x97x38159x97x38159x97x38159x97x38159x97x38159x97x38159x97x38159x97x38
    Working Temperature-40-+70°C
    Satety StandardsUL60950-1, TUV EN60950-1 approved
    EMC StandardsEN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
