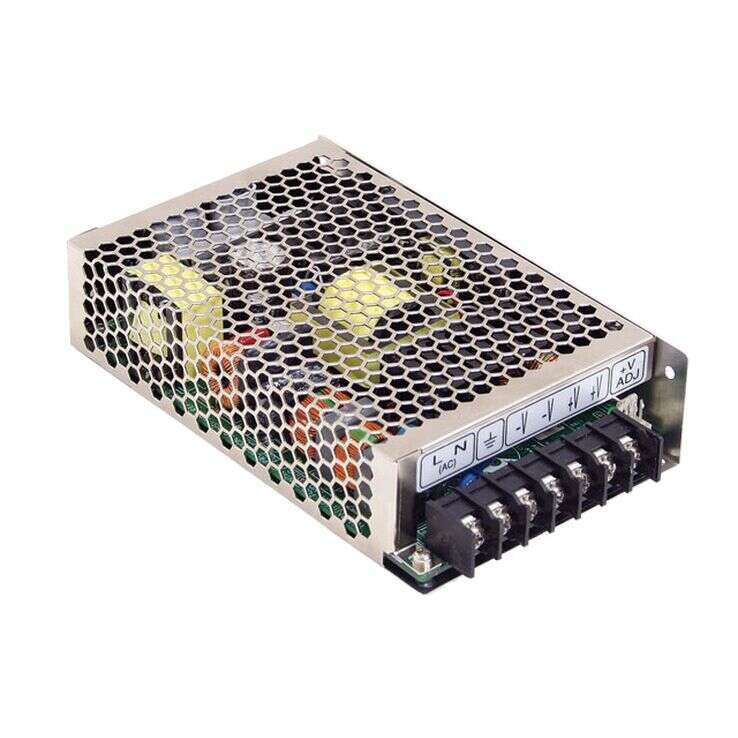

HRP-150 Series

Enclosed Power Supplies 150W

hrp-150

HRP-150 Series Main Features:

Built-in active PFC function

Protections: Short circuit / Overload/ Over voltage/ Over Temperature

Models:

Manufacturer:

Type:

Other features:

HRP-150-3.3 / HRP-150-5
HRP-150-7.5 / HRP-150-12
HRP-150-15 / HRP-150-24
HRP-150-36 / HRP-150-48

MEAN WELL

Enclosed Power Supplies

Universal AC input / Full range

Withstand 300VAC surge input for 5 seconds

Built-in constant current limiting circuit

Built-in 5V / 0.3A standby output

Cooling by free air

1U low profile

LED Indicator for power on

100% full load burn-in test

5 years warranty

Quote Request

    HRP-150-3.3HRP-150-5HRP-150-7.5HRP-150-12HRP-150-15HRP-150-24HRP-150-36HRP-150-48
    Wattage150150150150150150150150
    Input Voltage85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC    		85-264VAC
    120-370VDC
    Output Current0~30A0~26A0~20A0~13A0~10A0~6.5A0~4.3A0~3.3A
    Output Voltage3.3V5V7.5V12V15V24V36V48V
    Output Voltage OptionSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment3.96~4.62V6~7V9.4~10.9V14.4~16.8V18.8~21.8V30~34.8V41.4~48.6V57.6~67.2V
    Dimensions159x97x38159x97x38159x97x38159x97x38159x97x38159x97x38159x97x38159x97x38
    Working Temperature-40-+70°C
    Satety StandardsUL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved
    EMC StandardsCompliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
